Universal Connectors

STOCK ITEM

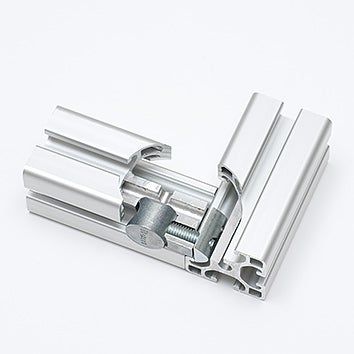

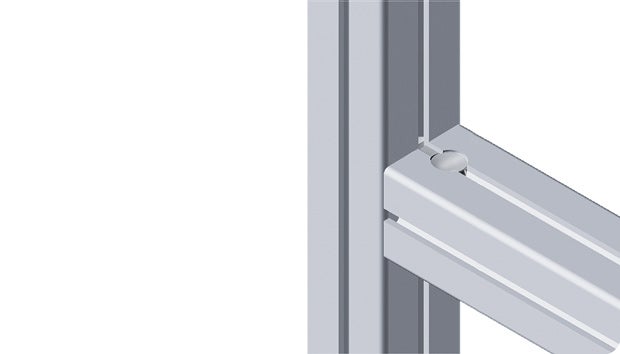

Links two aluminium profiles. Supplied with slot nut and screw.
Material: Galvanised die-cast zinc
Dummy plug material: PVC, black
Read more

Product Information

System: 30 - Slot 6; 20 - Slot 5
Type: Fasteners

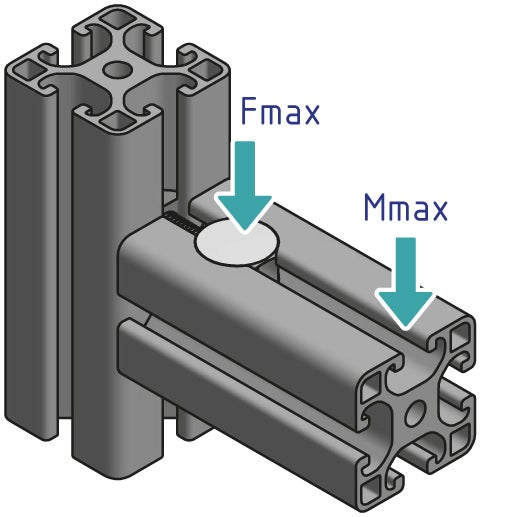

Designation Select all CAD Compare Get quote Lead Time * Description System A D H Fmax (N) Mmax (Nm)
Get quote 1 Set of universal connectors with guide lug and 4 mm hole; M4 slot nut and cheese head screw included 20 - Slot 5 5.4 11.8 8.5 400 12
Get quote 1 Set of universal connectors with guide lug and 6 mm hole; M6 slot nut and cheese head screw included 30 - Slot 6 9.3 15.7 12.5 1250 35

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
