Slider NSD/NSDA

Constructed as the NSW/NSA-slider with mounting holes parallel to the direction of preferred loading. It is available for sizes 28 and 43, with three or five rollers, depending on load case and load direction set with the corresponding configuration.

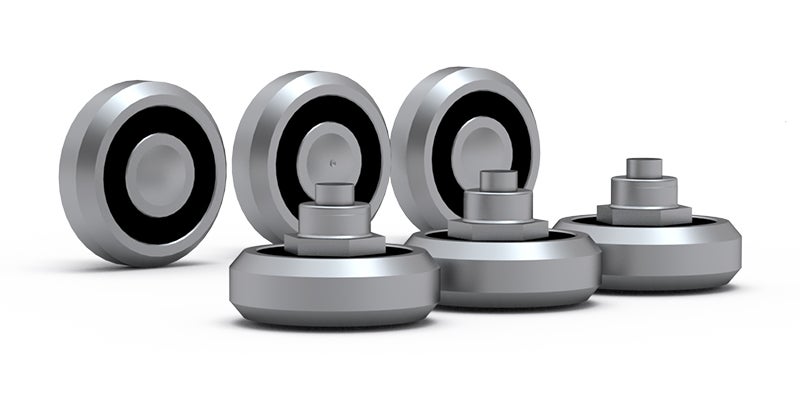

Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.

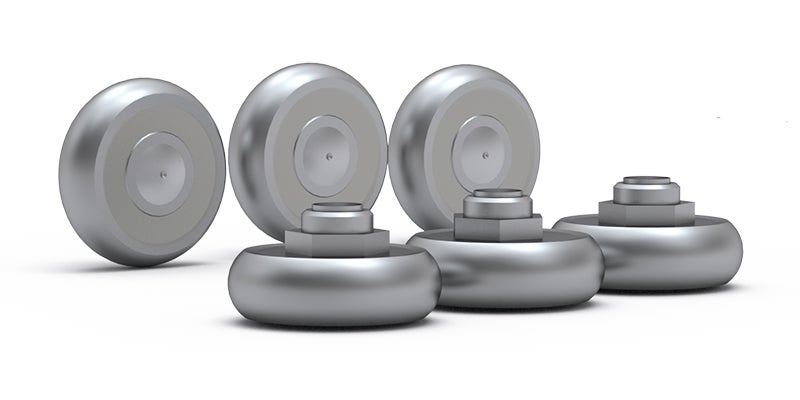

All NSDA-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.

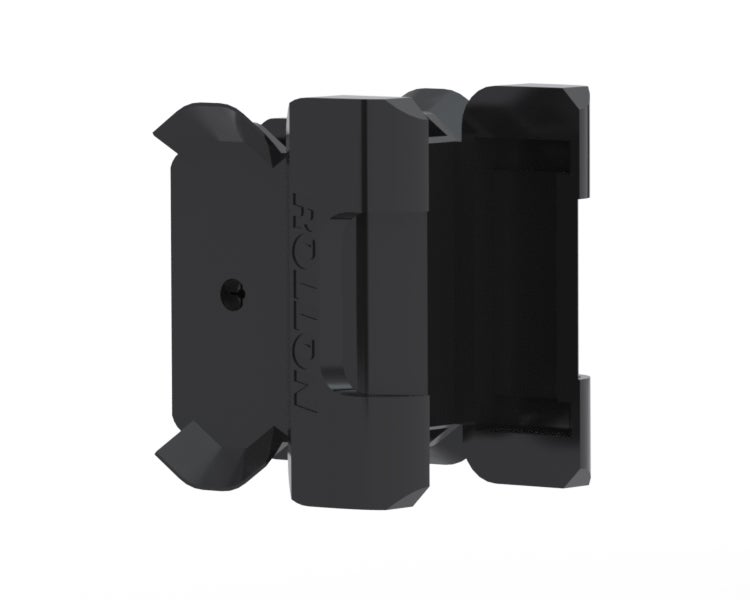

All NSD/NSDA sliders have wipers assembled and the wipers for K-Rails are adapted to work on the two different raceway shapes.

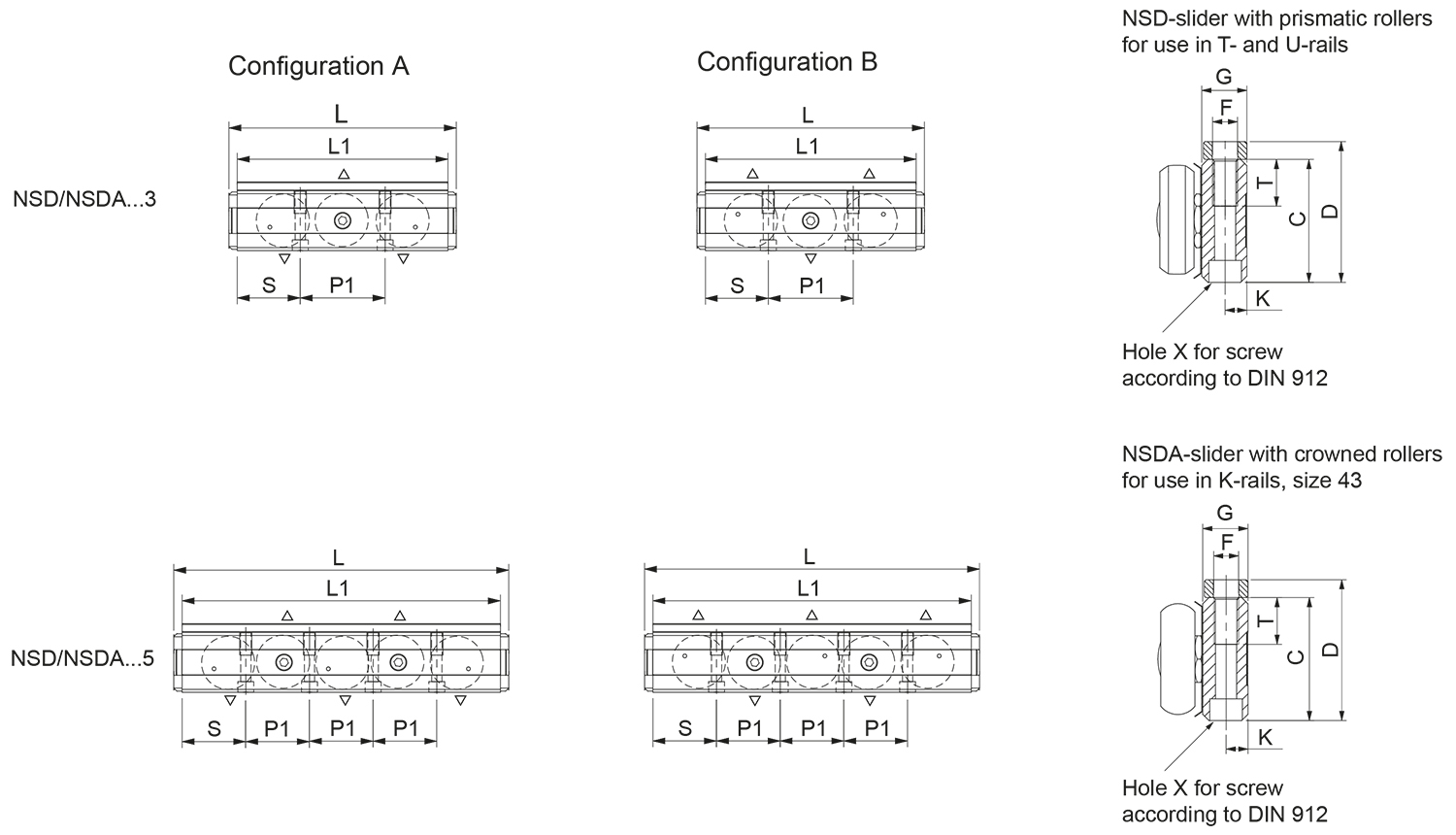

Dimensions in mm.
Read more

Product Information

Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.
Max. Radial Load Capacity (N): 15,000 (per slider)
Temperature range (°C): -20 to +120
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Size Max. Speed (m/s) Max. Acceleration (m/s) Roller type Number of rollers Number of Fixing Holes
2 28 3 10 CPA28 3 2
2 28 3 10 CPA28 3 2
2 28 3 10 CPA28 3 2
2 28 3 10 CPA28 3 2
2 28 3 10 CPA28 5 4
2 28 3 10 CPA28 5 4
2 28 3 10 CPA28 5 4
2 28 3 10 CPA28 5 4
2 43 7 15 CPA43 3 2
2 43 7 15 CPA43 3 2
2 43 7 15 CPA43 3 2
2 43 7 15 CPA43 3 2
2 43 7 15 CPA43 5 4
2 43 7 15 CPA43 5 4
2 43 7 15 CPA43 5 4
2 43 7 15 CPA43 5 4
2 43 7 15 CRPA43 3 2
2 43 7 15 CRPA43 3 2
2 43 7 15 CRPA43 3 2
2 43 7 15 CRPA43 3 2
2 43 7 15 CRPA43 5 4
2 43 7 15 CRPA43 5 4
2 43 7 15 CRPA43 5 4
2 43 7 15 CRPA43 5 4

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L1 L C D G F K P1 S T X
97 108 24.9 30.45 9.7 M6 4.7 36 30.5 15 M5
97 108 24.9 30.45 9.7 M6 4.7 36 30.5 15 M5
97 108 24.9 30.45 9.7 M6 4.7 36 30.5 15 M5
97 108 24.9 30.45 9.7 M6 4.7 36 30.5 15 M5
142 153 24.9 30.45 9.7 M6 4.7 27 30.5 15 M5
142 153 24.9 30.45 9.7 M6 4.7 27 30.5 15 M5
142 153 24.9 30.45 9.7 M6 4.7 27 30.5 15 M5
142 153 24.9 30.45 9.7 M6 4.7 27 30.5 15 M5
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
139 150 39.5 45.25 14.5 M8 7 56 41.5 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6
210 221 39.5 45.25 14.5 M8 7 42 42 15 M6

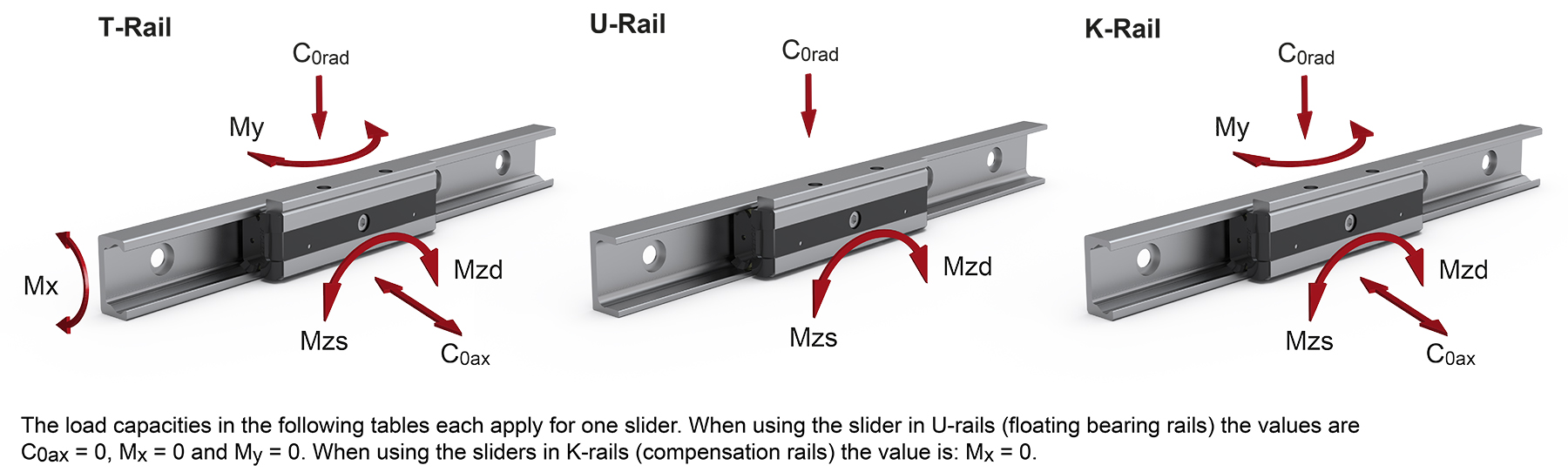

Designation Select all CAD Compare Get quote C (N) C0rad (N) C0ax (N) Mx (Nm) My (Nm) Mzd (Nm) Mzs (Nm) Weight (kg)
4260 2170 640 6.2 16 27.2 27.2 0.23
4260 2170 640 6.2 16 27.2 27.2 0.23
4260 2170 640 6.2 16 27.2 27.2 0.23
4260 2170 640 6.2 16 27.2 27.2 0.23
5065 2580 900 11.5 29 81.7 81.7 0.35
5065 2580 900 11.5 29 81.7 81.7 0.35
5065 2580 900 11.5 29 81.7 81.7 0.35
5065 2580 900 11.5 29 81.7 81.7 0.35
12280 5500 1570 23.6 60 104.5 104.5 0.8
12280 5500 1570 23.6 60 104.5 104.5 0.8
12280 5500 1570 23.6 60 104.5 104.5 0.8
12280 5500 1570 23.6 60 104.5 104.5 0.8
14675 9540 2215 43.6 108.6 313.5 313.5 1.24
14675 9540 2215 43.6 108.6 313.5 313.5 1.24
14675 9540 2215 43.6 108.6 313.5 313.5 1.24
14675 9540 2215 43.6 108.6 313.5 313.5 1.24
12280 5100 1320 0 50.4 96.9 96.9 0.8
12280 5100 1320 0 50.4 96.9 96.9 0.8
12280 5100 1320 0 50.4 96.9 96.9 0.8
12280 5100 1320 0 50.4 96.9 96.9 0.8
14675 6065 1570 0 108.7 290.7 290.7 1.24
14675 6065 1570 0 108.7 290.7 290.7 1.24
14675 6065 1570 0 108.7 290.7 290.7 1.24
14675 6065 1570 0 108.7 290.7 290.7 1.24
Designation Select all CAD Compare Get quote A1 H (Slider+T-rail) H (Slider+U-rail) H (Slider+K-rail) W1 W
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
28 (+0.25/-0.10) 23.9 (±0.15) 23.9* n/a 24.9 (0/-0.2) 32 (+0.1/-0.3)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) 37 (±0.15) 37* n/a 39.5 (0/-0.2) 47 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
43 (+0.35/-0.10) n/a n/a 37 (±0.15) 39.5 (0/-0.2) 41.25 (+0.2/-0.4)
