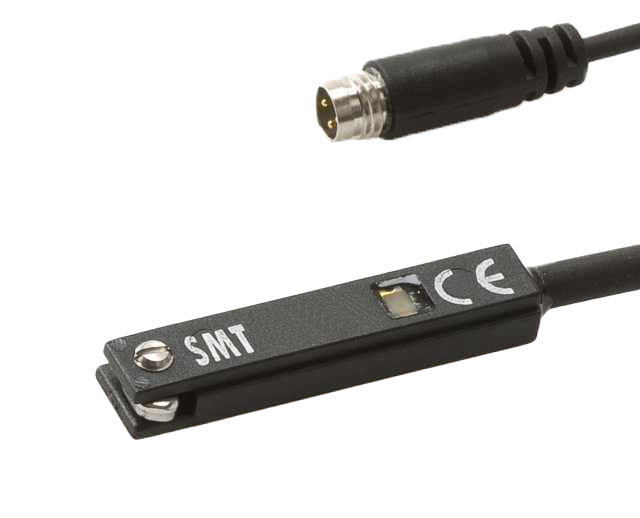

Magnetic Field Sensors
Contact Rollco for CAD-files.
Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Ambient Temperature (°C): -10 ~ +70
Sensor Type: GMR sensor
Switching function: NC/NO
Max. Switching Current (mA): 200x.
Switching Frequency (Hz): 1000
Voltage drop: 1.5 V / 200 mA max.
Protection Class: IP67
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Cable material length: PU - 0.3 m
Output: PNP
Operating Voltage (V DC): 10 ~ 28
Max. Power Rating (W): 5.5 max.
Current consumption: 10 mA / 24 V max.
Shock/vibration: 50 G / 9 G
LED indicator: Yellow
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | |
|---|---|---|---|---|---|---|---|
|
|
|

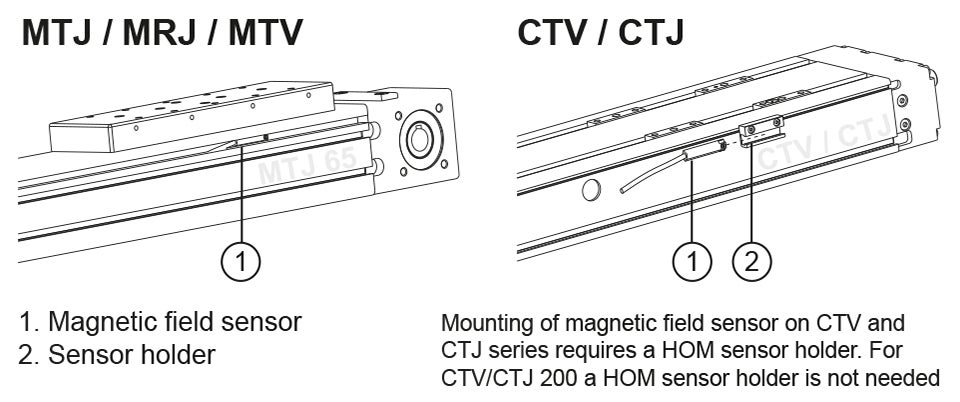

2 | CTV 90, 110, 145CTJ: 90, 110, 145 | ||||
|
|
|
2 | MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200 | ||||
|
|
|
2 | CTV 90, 110, 145CTJ: 90, 110, 145 | ||||
|
|
|
2 | MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200 | ||||
|
|
|
2 | CTV 90, 110, 145CTJ: 90, 110, 145 | ||||
|
|
|
2 | - | ||||
|
|
|
2 | - | ||||
|
|
|
2 | - | ||||
|
|
|
2 | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
