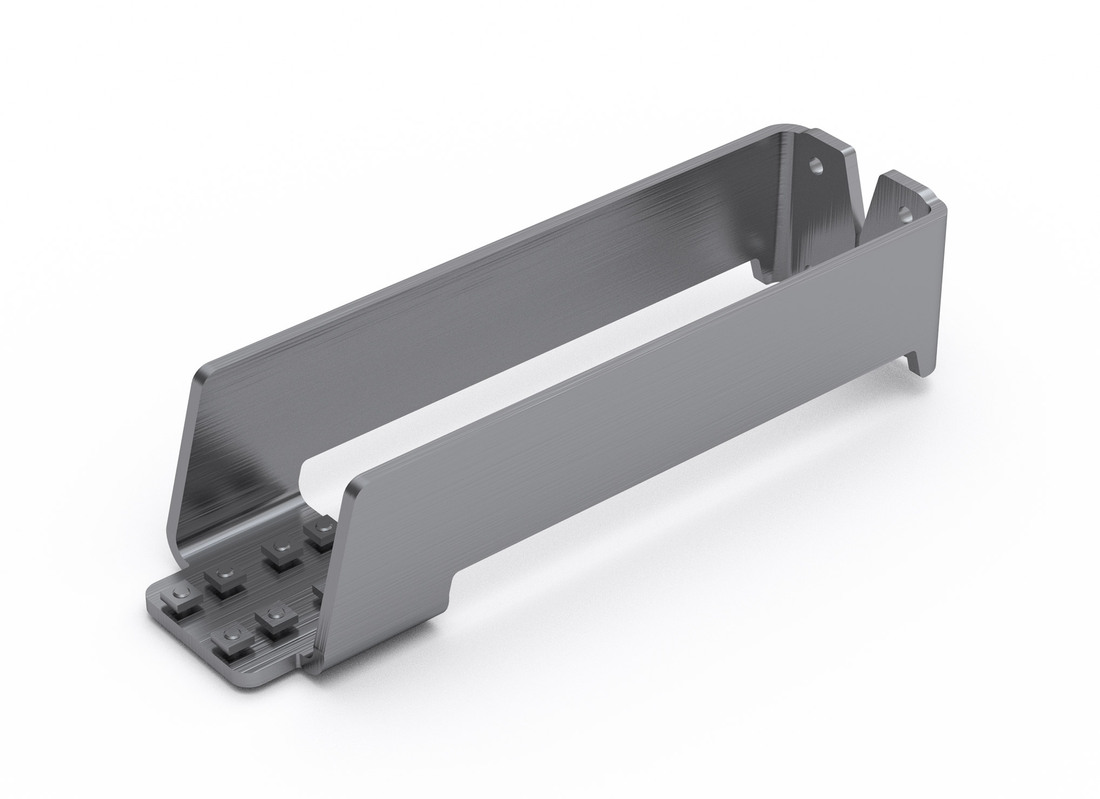

Back mount ABM
Dimensions in mm.
Mounting screws and nuts are included.
□ = Square cross section
Read more
Mounting screws and nuts are included.
□ = Square cross section
Product Information
Material: Stainless steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Motor compatibility (type/size □ (mm)) | Material | Fmax (N) | Mass (kg) | T (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | ABM 25 - T1 | MCE 25 | Stepper / 28 | Stainless steel | F MCE | 0.14 | 0.3 | ||||
|
|
|
2 | ABM 32 - T1 | MCE 32 | Stepper / 28 | Stainless steel | F MCE | 0.24 | 1.2 | ||||
|
|
|
2 | ABM 32 - T2 | MCE 32 | Stepper / 42 | Stainless steel | F MCE | 0.29 | 1.2 | ||||
|
|
|
2 | ABM 45 - T1 | MCE 45 | Stepper / 42 | Stainless steel | F MCE | 0.62 | 2.2 | ||||
|
|
|
2 | ABM 45 - T2 | MCE 45 | Stepper / 56 | Stainless steel | F MCE | 0.72 | 2.2 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
M4 | 165 | 30.5 | 27.5 | 35 | 18 | 13.5 | 28 | 12 | 29.8 | 35.5 | 27 | 2.5 | ||||
|
|
|
M5 | 170 | 38.5 | 35 | 40 | 22 | 13.5 | 28 | 12 | 37.7 | 44.5 | 34 | 3 | ||||
|
|
|
M5 | 200 | 46 | 35 | 40 | 22 | 13.5 | 28 | 12 | 37.7 | 52 | 34 | 3 | ||||
|
|
|
M6 | 210 | 53.5 | 49 | 50 | 32 | 20 | 40 | 16 | 52.7 | 61.5 | 48 | 4 | ||||
|
|
|
M6 | 245 | 64.9 | 49 | 50 | 32 | 20 | 40 | 16 | 52.7 | 72.9 | 48 | 4 |
