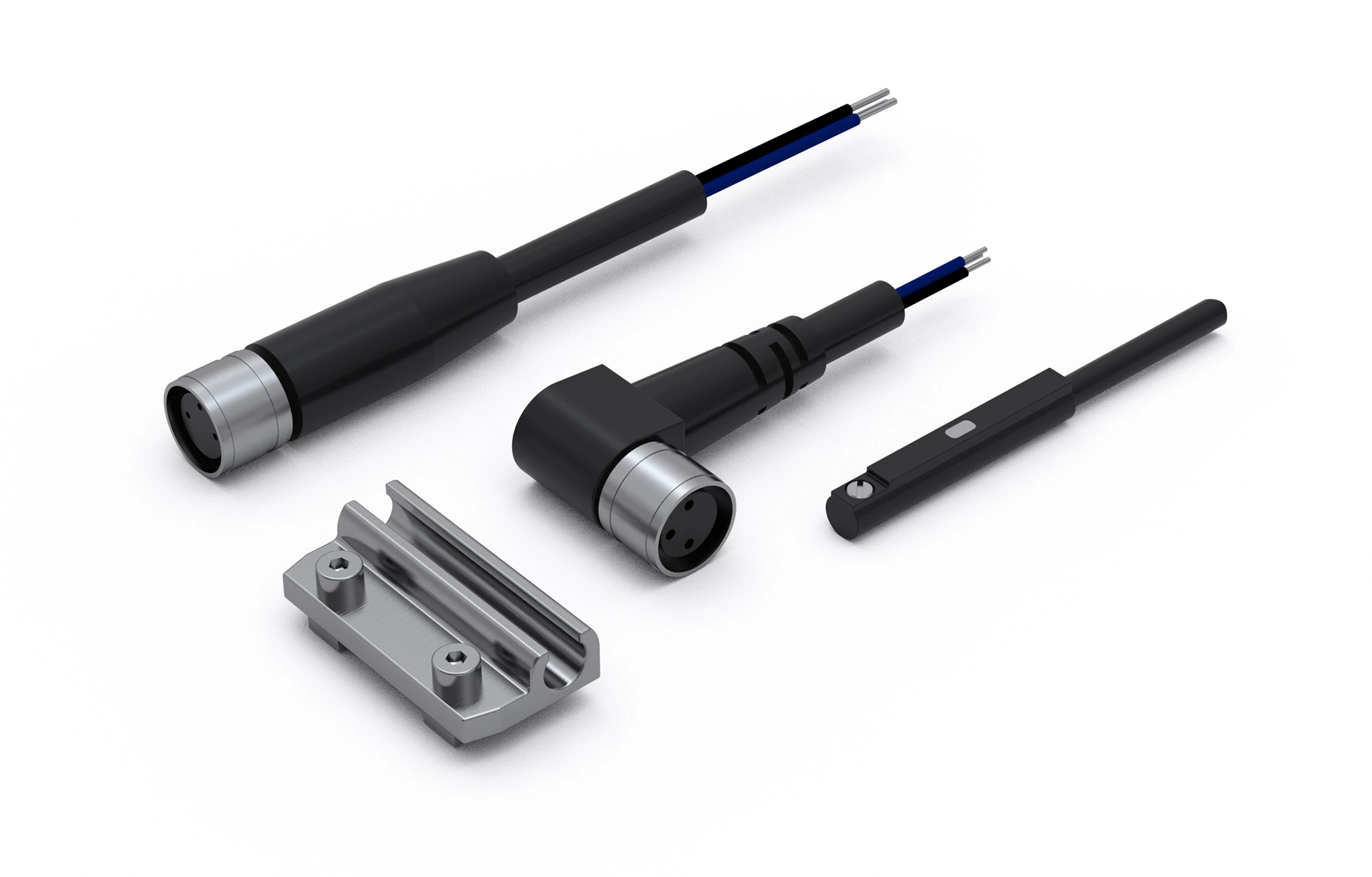

Magnetic field sensors

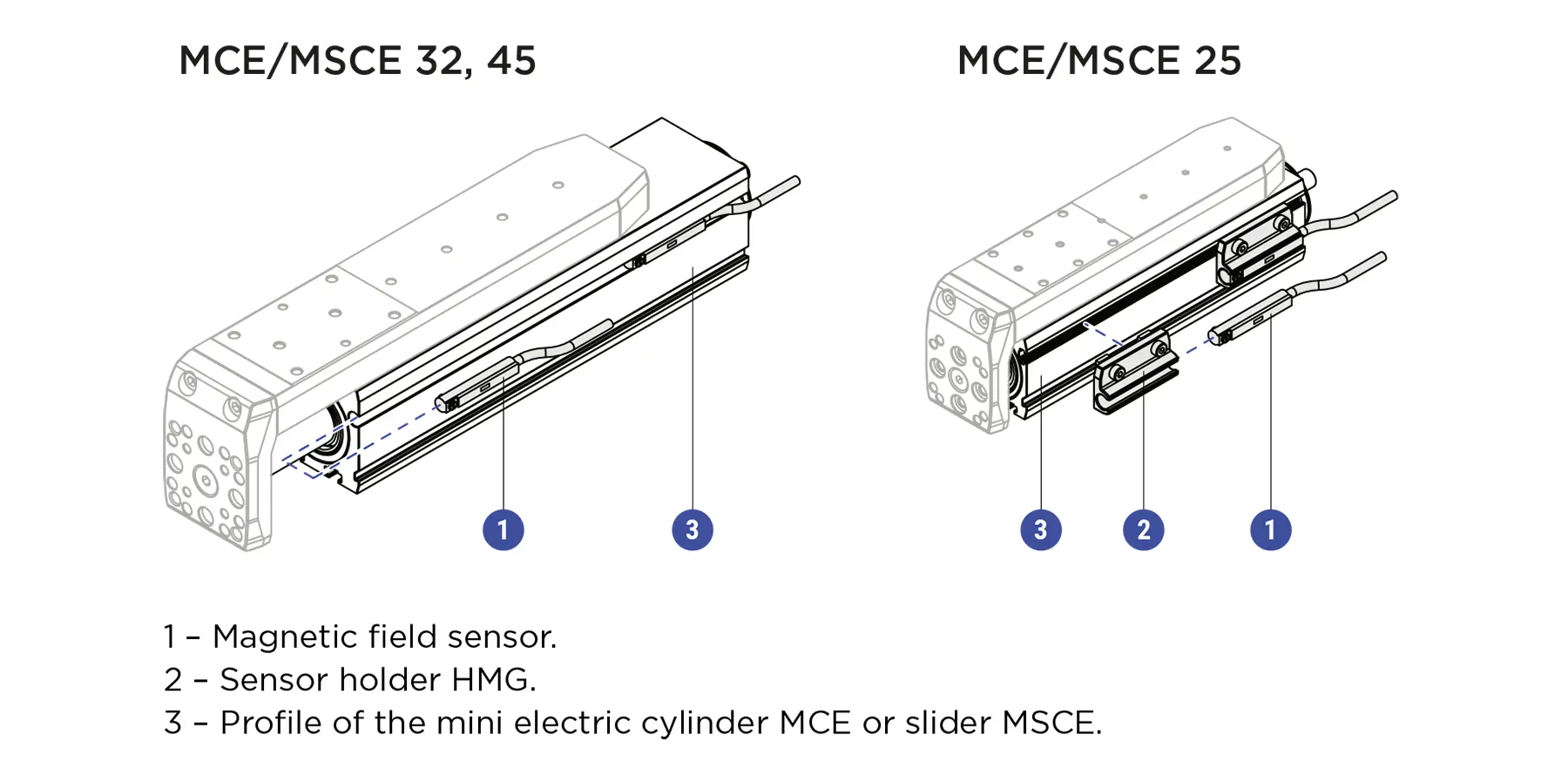

Magnetic field sensors can be mounted by using the slot for the magnetic field sensor placed on the sides of the MCE/MSCE profile.
For the MCE/MSCE size of 25, mounting of the magnetic field sensor requires an HMG sensor holder.
Read more
For the MCE/MSCE size of 25, mounting of the magnetic field sensor requires an HMG sensor holder.
Product Information
Protection Class: IP67
Ambient Temperature (°C): –10 ~ +70
Cable material length: PUR, 150 mm
Current consumption: 6 mA @ 24 V DC max.
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Function principle: Magnetic
LED indicator: Green
Max. Leakage Current (mA): 0.01
Max. Power Rating (W): 6
Max. Switching Current (mA): 200
Operating Voltage (V DC): 5 ~ 30
Sensor Type: PNP current sourcing
Shock/vibration: 50 G / 9 G
Switching Frequency (Hz): 1000
Switching function: NC or NO
Voltage drop: 0.5 V @ 200 mA max.
Wiring method: 3-wire type
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Material | Cable Length (m) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|

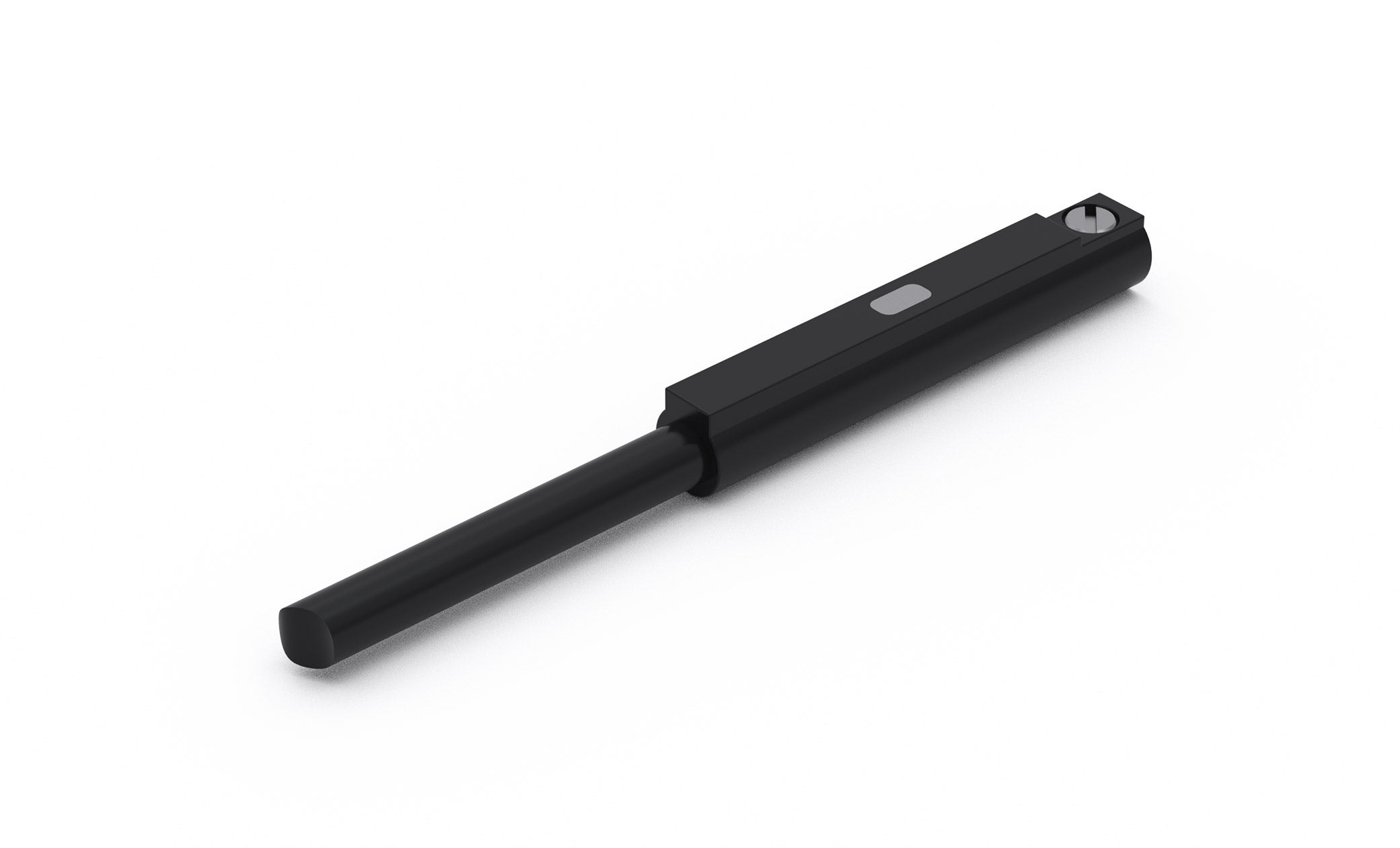

2 | NC-normally close | MCE/MSCE series | Magnetic sensor | - | - | ||||
|
|
|
2 | NO-normally open | MCE/MSCE series | Magnetic sensor | - | - | ||||
|
|
|

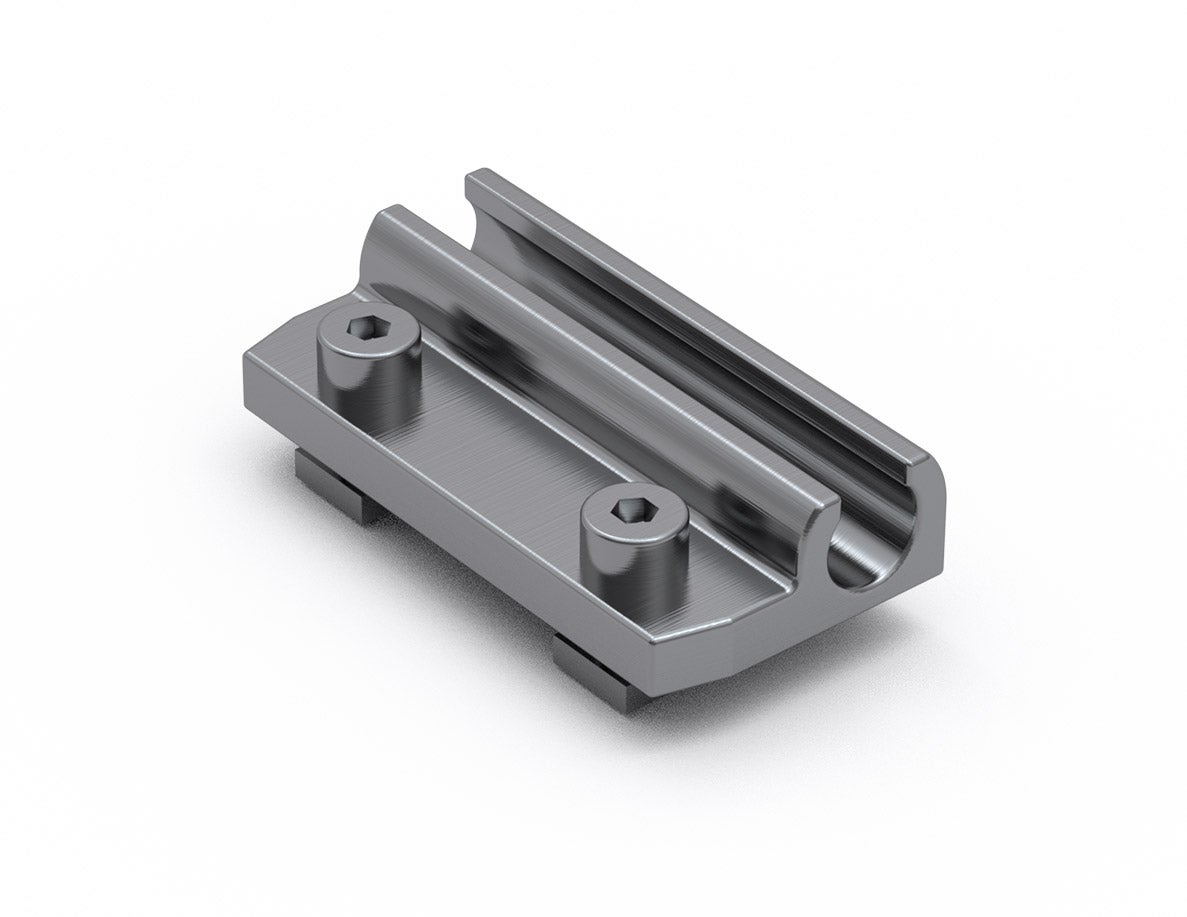

2 | - | MCE/MSCE 25 | Sensor holder | Powder coated zinc alloy | - | ||||
|
|
|

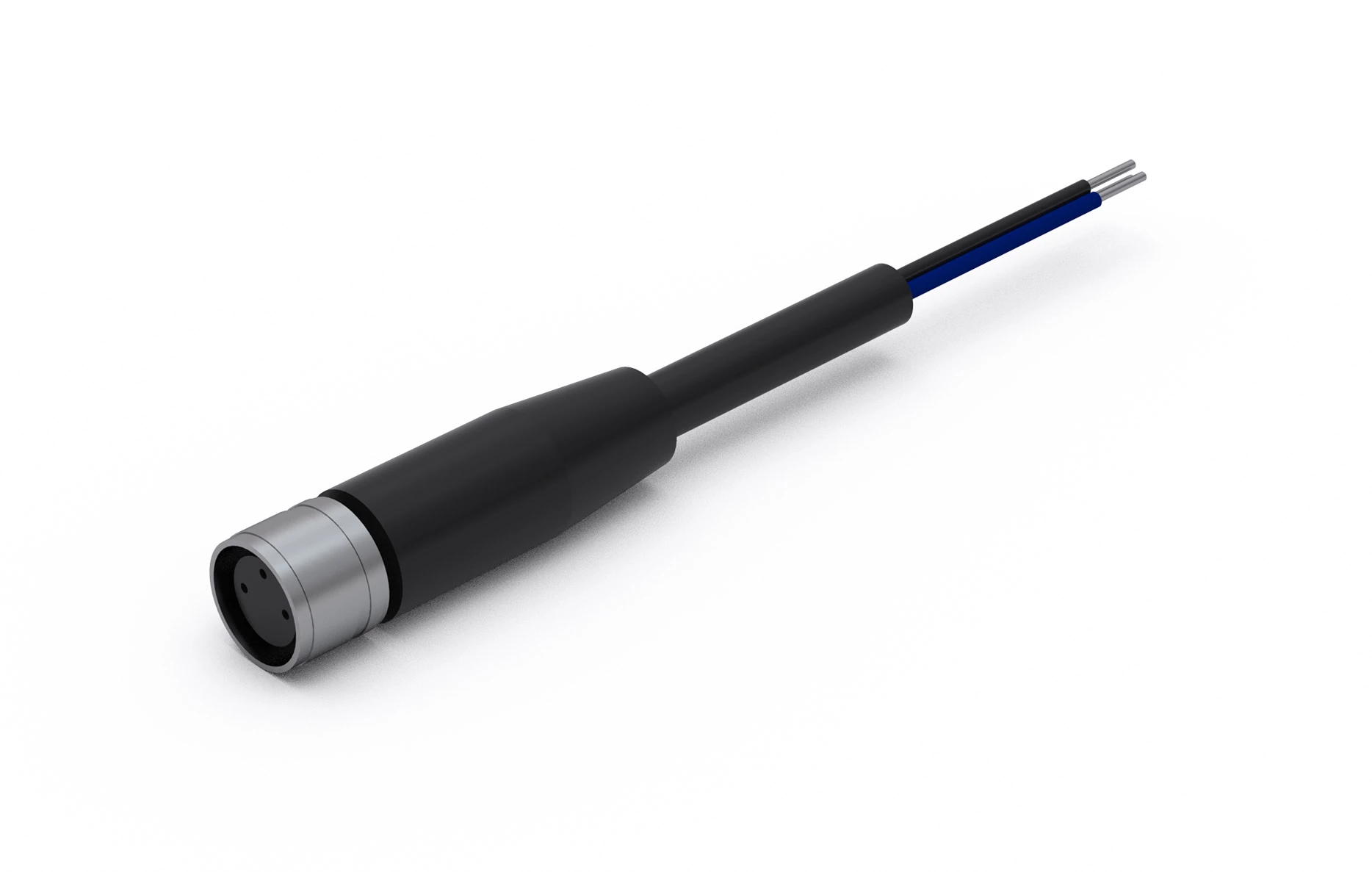

2 | - | SMO-40TP-K NC / SMO-40TP-K NO | Straight connector extension cable | - | 2 | ||||
|
|
|
2 | - | SMO-40TP-K NC / SMO-40TP-K NO | Straight connector extension cable | - | 5 | ||||
|
|
|

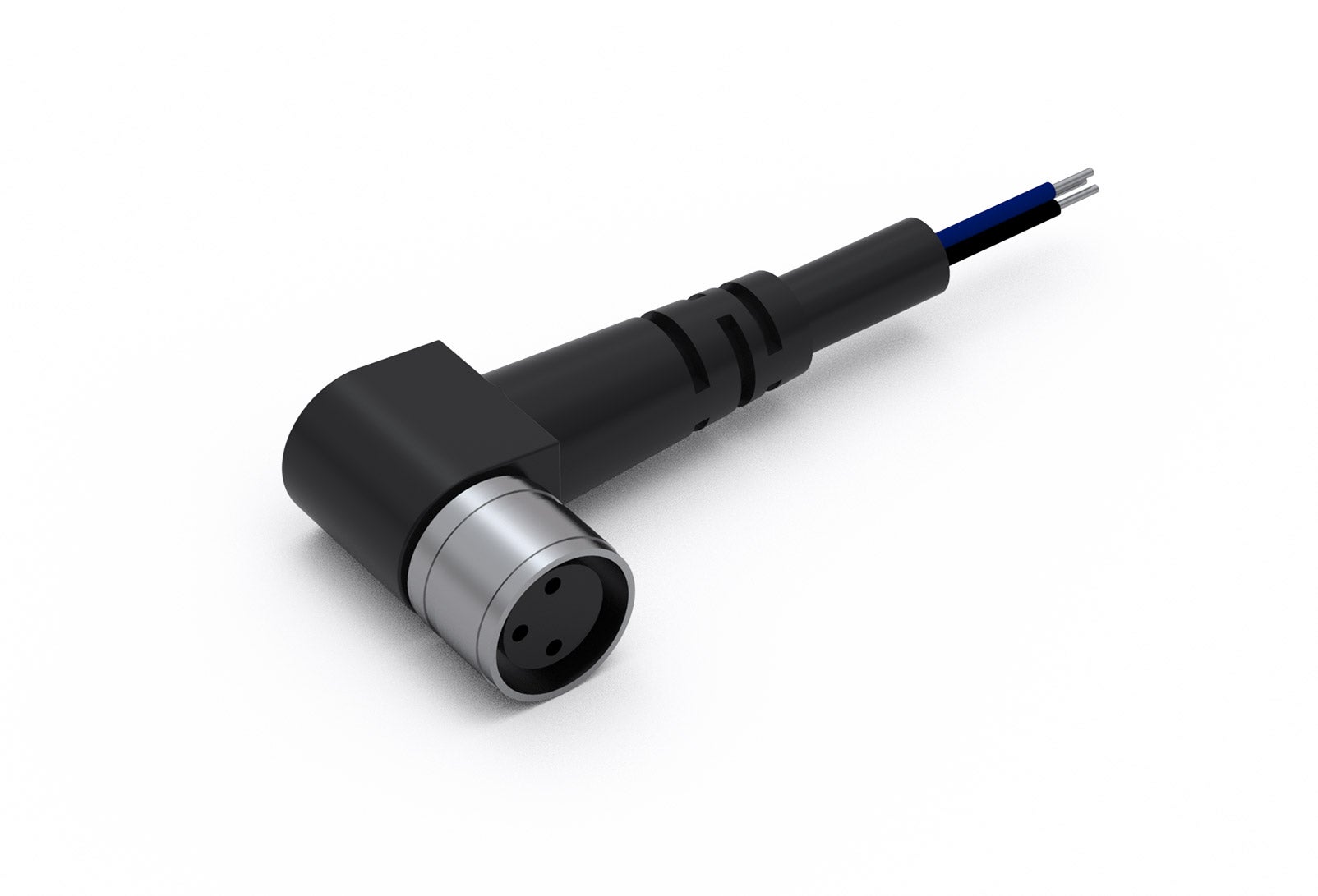

2 | - | SMO-40TP-K NC / SMO-40TP-K NO | Angled connector extension cable | - | 2 | ||||
|
|
|
2 | - | SMO-40TP-K NC / SMO-40TP-K NO | Angled connector extension cable | - | 5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
