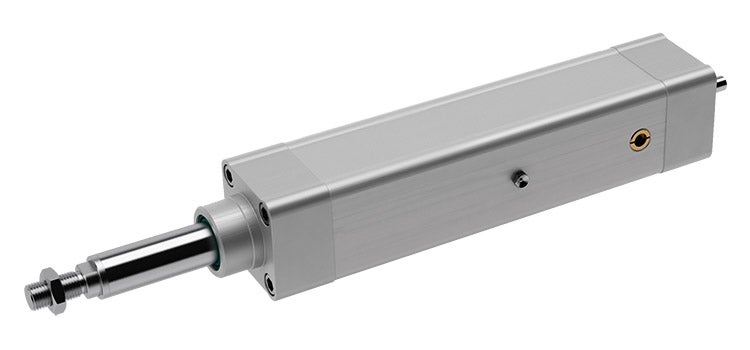

PNCE
Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance

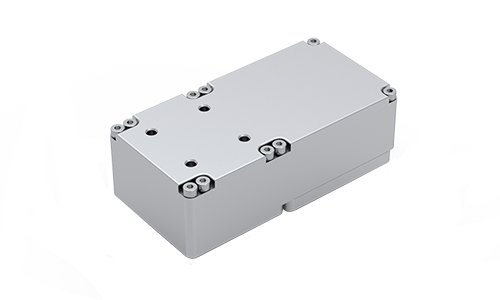

Motor Side Drive with a Timing Belt
Side drive for PNCE Electromechanical cylinder.
Mounting screws are included.
Note: This is an dummy item. The motor flange will be designed after receipt of order and drawing of requested motor type. The geometry of motor flange can be changed in order to adapt it to a requested motor type.
Dimensions in mm.
Max. radial load on shaft on shaft is the load which is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.
Mass in an average value. It could differ depending to the motor dimensions.
N in the table below indicates standard value. It could differ depending to the motor dimensions M and L1.
For order information, see Order Codes. Contact us for CAD-files and further information.

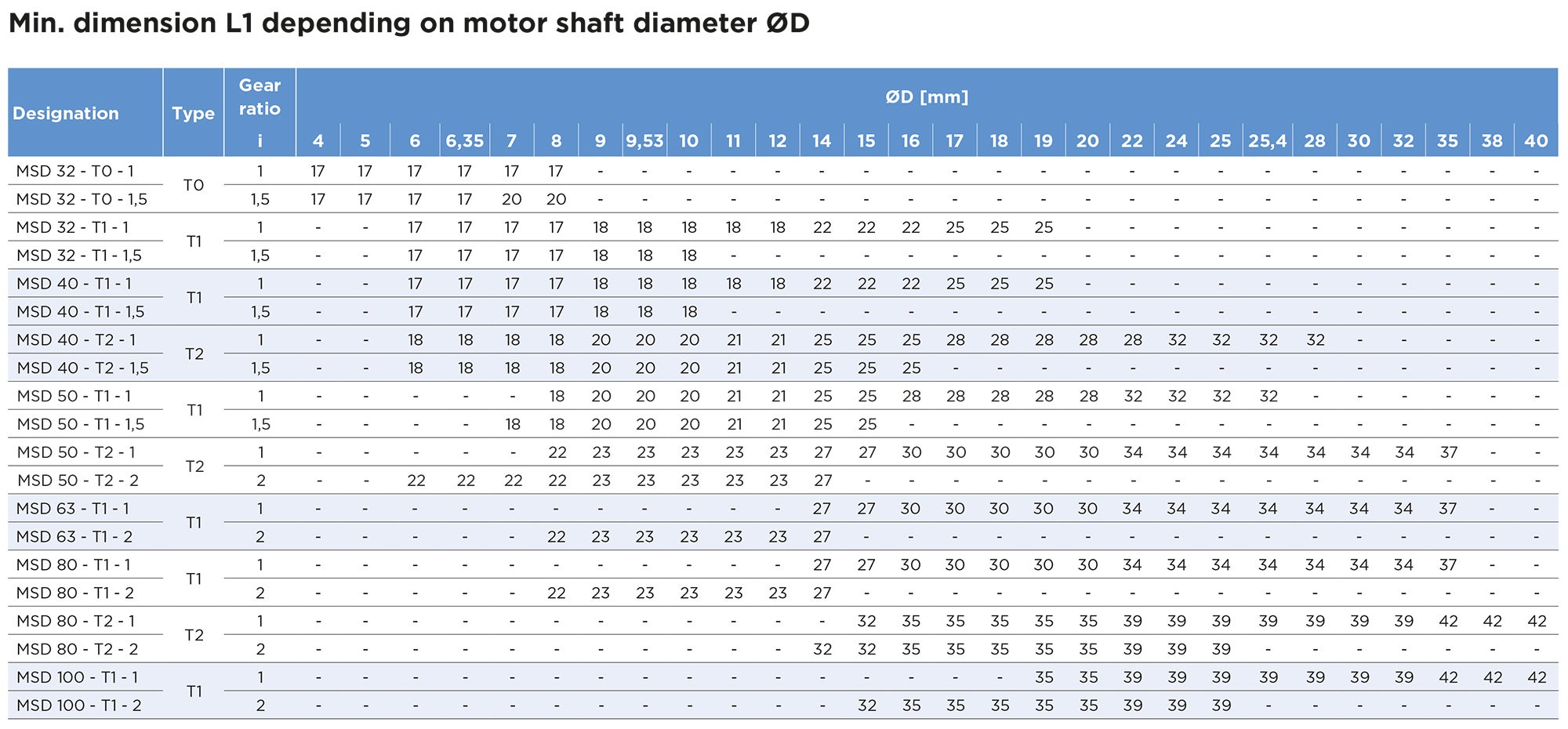

** Minimum dimension L1 depends on the size of particular clamping set. See attached table.
Read more
Mounting screws are included.
Note: This is an dummy item. The motor flange will be designed after receipt of order and drawing of requested motor type. The geometry of motor flange can be changed in order to adapt it to a requested motor type.
Dimensions in mm.
Max. radial load on shaft on shaft is the load which is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.
Mass in an average value. It could differ depending to the motor dimensions.
N in the table below indicates standard value. It could differ depending to the motor dimensions M and L1.
For order information, see Order Codes. Contact us for CAD-files and further information.
** Minimum dimension L1 depends on the size of particular clamping set. See attached table.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Compatible with | Type | Gear ratio (I) | Max. Drive Torque (Nm) | Max. Radial Load on Shaft (N) | No Load Torque (Nm) | Mass Moment of Inertia (10⁻⁶ kg m²) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | PNCE 32 | T0 | 1 | 1 | 40 | 0.03 | 4.6 | 0.5 | ||
|
|
|
2 | PNCE 32 | T1 | 1 | 1.4 | 40 | 0.1 | 53 | 0.85 | ||
|
|
|
2 | PNCE 32 | T1 | 1.5 | 0.9 | 40 | 0.07 | 31 | 0.72 | ||
|
|
|
2 | PNCE 40 | T1 | 1 | 3 | 80 | 0.1 | 62 | 0.92 | ||
|
|
|
2 | PNCE 40 | T1 | 1.5 | 2 | 80 | 0.07 | 44 | 0.79 | ||
|
|
|
2 | PNCE 40 | T2 | 1 | 4 | 80 | 0.27 | 288 | 1.66 | ||
|
|
|
2 | PNCE 40 | T2 | 1.5 | 2.6 | 80 | 0.18 | 200 | 1.39 | ||
|
|
|
2 | PNCE 50 | T1 | 1 | 9 | 170 | 0.27 | 363 | 1.76 | ||
|
|
|
2 | PNCE 50 | T1 | 1.5 | 6 | 170 | 0.18 | 245 | 1.48 | ||
|
|
|
2 | PNCE 50 | T2 | 1 | 9 | 205 | 0.3 | 928 | 3.63 | ||
|
|
|
2 | PNCE 50 | T2 | 2 | 4.5 | 205 | 0.15 | 559 | 3.06 | ||
|
|
|
2 | PNCE 63 | T1 | 1 | 21 | 500 | 0.34 | 1041 | 3.72 | ||
|
|
|
2 | PNCE 63 | T1 | 2 | 8.9 | 400 | 0.17 | 616 | 3.1 | ||
|
|
|
2 | PNCE 80 | T1 | 1 | 24 | 500 | 0.34 | 1008 | 3.72 | ||
|
|
|
2 | PNCE 80 | T1 | 2 | 10 | 400 | 0.17 | 575 | 3.3 | ||
|
|
|
2 | PNCE 80 | T2 | 1 | 48 | 500 | 0.37 | 6000 | 9.3 | ||
|
|
|
2 | PNCE 80 | T2 | 2 | 24 | 500 | 0.18 | 4145 | 8.6 | ||
|
|
|
2 | PNCE 100 | T1 | 1 | 110 | 1000 | 0.4 | 6181 | 9.4 | ||
|
|
|
2 | PNCE 100 | T1 | 2 | 50 | 1000 | 0.2 | 4333 | 8.8 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | B | E | F | G | G2 | N | K | L | P | M2 | C | A | L1 Min. Clamping set | L1 Min. Keyway | L1 max. | ØD Min. Keyway | ØD Max. Keyway | ØD Max. Clamping set |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
max 60 | 58.5 (±0.5) | 52 | 39 | 33 | 6 | 26 | 113 | 32.5 | Ø M6 × 8.5 | max Ø 36 | max 52 | ** | 20 | 32 | >8 | 12 | 8 | ||
|
|
|
max 80 | 65 (±0.5) | 68 | 42 | 36 | 8 | 31 | 135 | 32.5 | Ø M6 × 8.5 | max Ø 52 | max 74 | ** | 25 | 38 | - | - | 19 | ||
|
|
|
max 80 | 64.5 (±0.5) | 68 | 42 | 36 | 8 | 31 | 135 | 32.5 | Ø M6 × 8.5 | max Ø 52 | max 74 | ** | 25 | 38 | >10 | 14 | 10 | ||
|
|
|
max 80 | 65 (±0.5) | 68 | 46 | 40 | 8 | 31 | 135 | 38 | Ø M6 × 8.5 | max Ø 52 | max 74 | ** | 25 | 42 | - | - | 19 | ||
|
|
|
max 80 | 64.5 (±0.5) | 68 | 46 | 40 | 8 | 31 | 135 | 38 | Ø M6 × 8.5 | max Ø 52 | max 74 | ** | 25 | 42 | >10 | 14 | 10 | ||
|
|
|
max 110 | 82.5 (±0.5) | 89 | 57 | 51 | 8 | 42 | 174 | 38 | Ø M6 × 8.5 | max Ø 75 | max 95 | ** | 30 | 52 | - | - | 28 | ||
|
|
|
max 110 | 81.7 (±0.5) | 89 | 57 | 51 | 8 | 42 | 174 | 38 | Ø M6 × 8.5 | max Ø 75 | max 95 | ** | 30 | 52 | >16 | 24 | 16 | ||
|
|
|
max 110 | 82.5 (±0.5) | 89 | 57 | 51 | 8 | 42 | 174 | 46.5 | Ø M8 × 9 | max Ø 75 | max 95 | ** | 30 | 52 | - | - | 28 | ||
|
|
|
max 110 | 81.7 (±0.5) | 89 | 57 | 51 | 8 | 42 | 174 | 46.5 | Ø M8 × 9 | max Ø 75 | max 95 | ** | 30 | 52 | >16 | 24 | 16 | ||
|
|
|
max 140 | 120 (±0.5) | 116 | 66 | 60 | 10 | 49.5 | 239 | 46.5 | Ø M8 × 9 | max Ø 100 | max 122 | ** | 35 | 62 | - | - | 35 | ||
|
|
|
max 140 | 125.8 (±0.5) | 116 | 66 | 60 | 10 | 49.5 | 239 | 46.5 | Ø M8 × 9 | max Ø 95 | max 122 | ** | 35 | 62 | >15 | 22 | 15 | ||
|
|
|
max 140 | 120 (±0.5) | 116 | 66 | 60 | 10 | 49.5 | 239 | 56.5 | Ø M8 × 10 | max Ø 100 | max 122 | ** | 35 | 62 | - | - | 35 | ||
|
|
|
max 140 | 125.8 (±0.5) | 116 | 66 | 60 | 10 | 49.5 | 239 | 56.5 | Ø M8 × 10 | max Ø 95 | max 122 | ** | 35 | 62 | >15 | 22 | 15 | ||
|
|
|
max 140 | 120 (±0.5) | 116 | 77 | 67 | 10 | 49.5 | 239 | 72 | Ø M10 × 17 | max Ø 100 | max 122 | ** | 35 | 68 | - | - | 35 | ||
|
|
|
max 140 | 125.8 (±0.5) | 116 | 77 | 67 | 10 | 49.5 | 239 | 72 | Ø M10 × 17 | max Ø 95 | max 122 | ** | 35 | 68 | >15 | 22 | 15 | ||
|
|
|
max 195 | 155 (±0.5) | 160 | 102 | 94 | 15 | 77 | 317 | 72 | Ø M10 × 17 | max Ø 145 | max 160 | ** | 45 | 99 | - | - | 40 | ||
|
|
|
max 195 | 151.6 (±0.5) | 160 | 102 | 94 | 15 | 77 | 317 | 72 | Ø M10 × 17 | max Ø 130 | max 160 | ** | 45 | 99 | >25.4 | 38 | 25.4 | ||
|
|
|
max 195 | 155 (±0.5) | 160 | 102 | 94 | 15 | 77 | 317 | 89 | Ø M10 × 17 | max Ø 145 | max 160 | ** | 45 | 99 | - | - | 40 | ||
|
|
|
max 195 | 151.6 (±0.5) | 160 | 102 | 94 | 15 | 77 | 317 | 89 | Ø M10 × 17 | max Ø 130 | max 160 | ** | 45 | 99 | >25.4 | 38 | 25.4 |
-

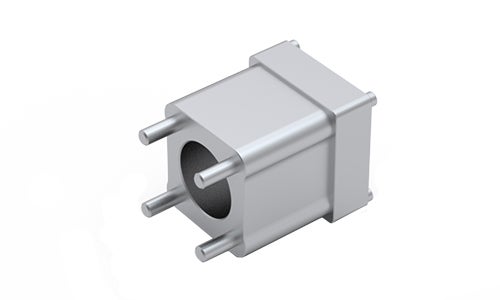

Motor Adapter
Motor adapter for PNCE will be designed after receipt of order and drawing of requested motor type
