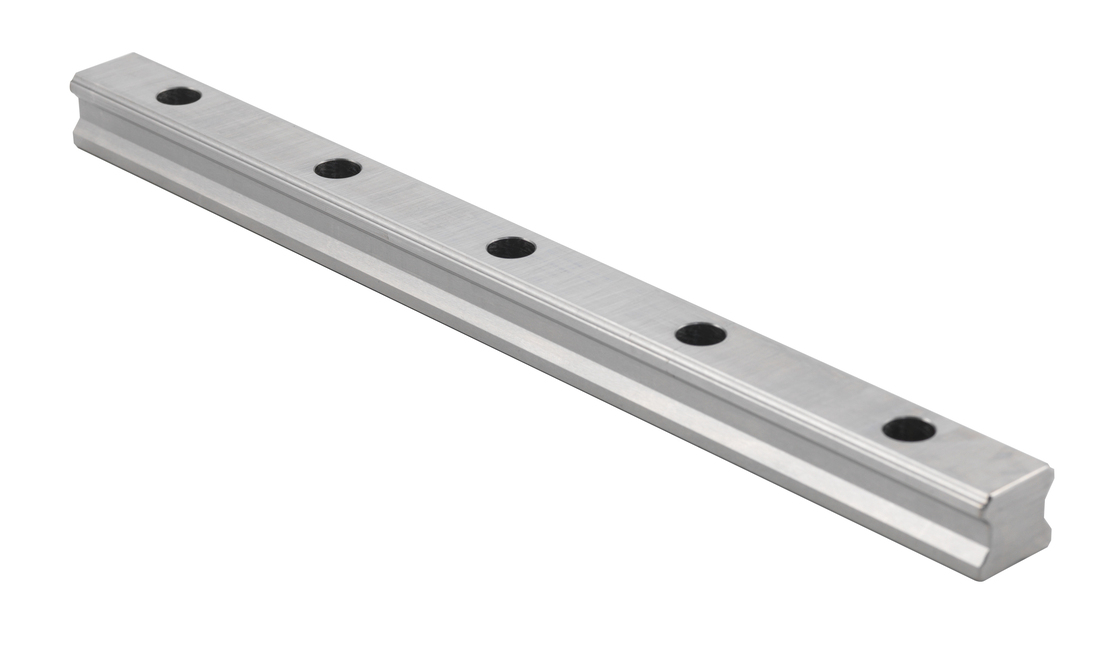

Standard Rail SBI

STOCK ITEM
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Note: If the maximum length exceeds this size please contact Rollco.

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.

Dimensions in mm.

For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight Rail (g/m) Recommended screw size
Get quote 1 1300 MC6S M4
Get quote 1 2200 MC6S M5
Get quote 1 3000 MC6S M6
Get quote 1 4250 MC6S M8
Get quote 1 6020 MC6S M8
Get quote 1 9770 MC6S M12
Get quote 1 13720 MC6S M14
Get quote 1 23170 MC6S M16

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
