DE..35

LOCALLY MANUFACTURED 80-381 kg/pair
Full extension consisting of two guide rails, combined as double-T profile, form the intermediate element, and two sliders, which as fixed and movable element form the connection to the adjacent construction. The square cross-section allows a compact size with high load capacities and low deflection, especially with radial loading. A custom design is available for extensions with double-sided strokes. The simultaneous movement of the intermediate element is implemented with a driving disc.

There are three versions of fixing holes available for the DE series in sizes 22 to 43:
• Version DEF with threaded holes.
• Version DEV with countersunk holes.
• Version DEM, both variants (mixed).
• Size 63 is always with threaded holes.

Custom Design DE Version D

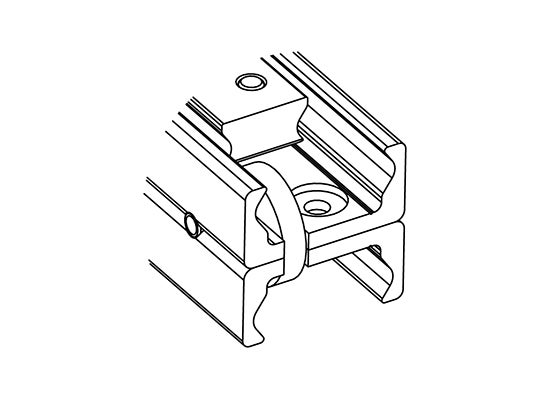

The eccentrically located driving disc on both ends of the DE...D ensures that the intermediate element is carried along and does not remain standing at an undefined location during double-sided strokes. This custom design is available in sizes 28, 35, 43 and 63 with all three versions of the fixing holes. It is built on the standard design of the DE series, however deviates in the technical data based on the model. For CAD-files or more information please contact Rollco.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

System Load Capacity Radial and System Load Capacity Axial values refers to a pair of rails. Dimensions in mm.

See Technical Information for further details, operating conditions and installation instructions.
Read more
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) System Load Capacity Axial (N) Number of Fixing Holes
Get quote 2 210 254 6.1 804 562 3
Get quote 2 290 318 6.1 1600 1120 4
Get quote 2 370 406 6.1 2050 1436 5
Get quote 2 450 494 6.1 2500 1586 6
Get quote 2 530 558 6.1 3370 1456 7
Get quote 2 610 646 6.1 3816 1252 8
Get quote 2 690 734 6.1 3378 1096 9
Get quote 2 770 798 6.1 3182 1032 10
Get quote 2 850 886 6.1 2850 926 11
Get quote 2 930 974 6.1 2582 838 12
Get quote 2 1010 1038 6.1 2466 800 13
Get quote 2 1090 1126 6.1 2262 734 14
Get quote 2 1170 1214 6.1 2090 678 15
Get quote 2 1250 1278 6.1 2012 654 16
Get quote 2 1330 1366 6.1 1874 608 17
Get quote 2 1410 1454 6.1 1754 570 18
Get quote 2 1490 1518 6.1 1700 552 19
