Rail
Standard zinc plated steel or Stainless Steel C-rail

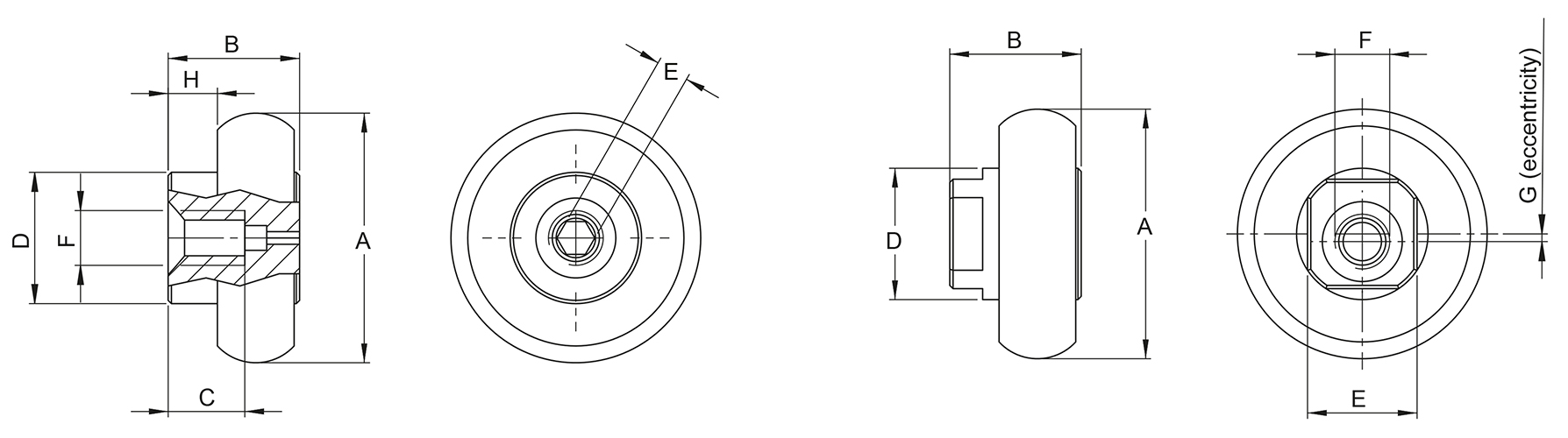

Rollers for Plate Version
CONCENTRIC ROLLER
RSBLN: Standard bearing steel
RXBLN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBLA: Standard bearing steel
RXBLA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your needs. Please contact Rollco for more information.
Read more
RSBLN: Standard bearing steel
RXBLN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBLA: Standard bearing steel
RXBLA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your needs. Please contact Rollco for more information.
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
14 | 8.2 | 6 | 8 | 2 | M4 | - | 4 | ||||
|
|
|
14 | 8.2 | 6 | 8 | 2 | M4 | - | 4 | ||||
|
|
|
14 | 8.2 | 6 | 8 | 6 | M4 | 0.5 | 4 | ||||
|
|
|
14 | 8.2 | 6 | 8 | 6 | M4 | 0.5 | 4 | ||||
|
|
|
22.8 | 12 | 7 | 12 | 3 | M5 | - | 4.5 | ||||
|
|
|
22.8 | 12 | 7 | 12 | 3 | M5 | - | 4.5 | ||||
|
|
|
22.8 | 12 | 7 | 12 | 10 | M5 | 0.7 | 4.5 | ||||
|
|
|
22.8 | 12 | 7 | 12 | 10 | M5 | 0.7 | 4.5 | ||||
|
|
|
35.6 | 17.3 | 12 | 16 | 3 | M6 | - | 6 | ||||
|
|
|
35.6 | 17.3 | 12 | 16 | 3 | M6 | - | 6 | ||||
|
|
|
35.6 | 17.3 | 12 | 16 | 13 | M6 | 0.8 | 6 | ||||
|
|
|
35.6 | 17.3 | 12 | 16 | 13 | M6 | 0.8 | 6 |
-
-
Slider Plate Version
Standard zinc plated steel or stainless steel slider for C-rail, plate version
