Rail

STOCK ITEM
SBTE: Standard zinc plated steel
SXTE: Stainless steel

Special lengths are available upon request. Please contact Rollco for more information.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Remark Material Weight (kg/m)
1 Fixing screws C20-M4x8 Stainless steel 0.47
1 Fixing screws C30-M5x10 Stainless steel 0.90
1 Fixing screws C45-M8x16 Standard zinc plated steel 2.29
1 Fixing screws C45-M8x16 Stainless steel 2.29

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

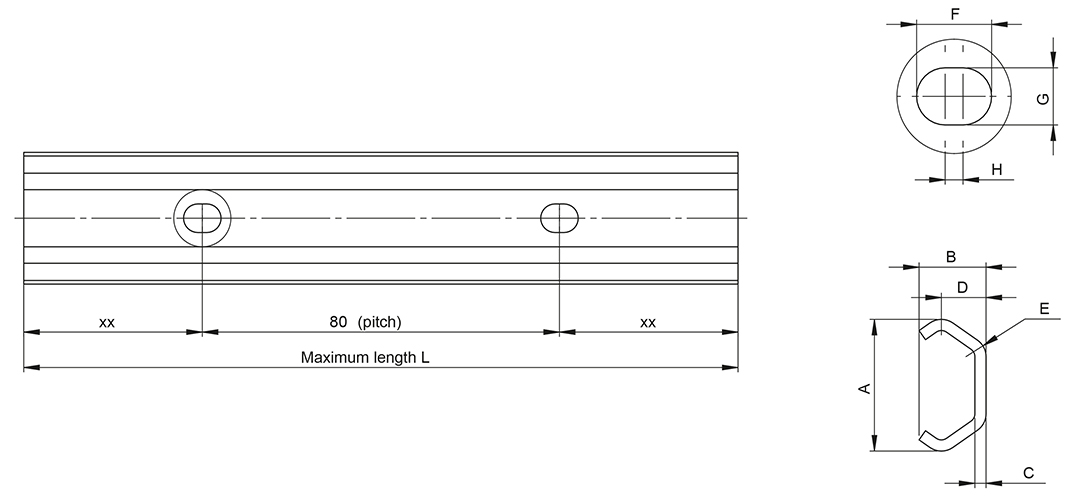

Designation Select all CAD Compare Get quote A B C D E F G H L
19.2 10 2 7 3 7 5 2 4000
29.5 15 2.5 10 4.5 8.4 6.4 2 4000
45.7 24.5 4 15.5 6 11 9 2 6080
45.7 24.5 4 15.5 6 11 9 2 6080
