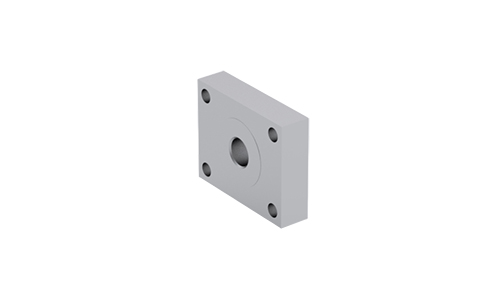

Piston rod accessory SGS, galvanized or stainless steel AISI 304
KSZ
Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | KSZ 32 | PNCE 32 | F PNCE | 0.11 | ||||
|
|
|
2 | KSZ 40 | PNCE 40 | F PNCE | 0.18 | ||||
|
|
|
2 | KSZ 50 | PNCE 50 | F PNCE | 0.25 | ||||
|
|
|
2 | KSZ 63 | PNCE 63 | F PNCE | 0.25 | ||||
|
|
|
2 | KSZ 80 | PNCE 80 | 24800 | 0.42 | ||||
|
|
|
2 | KSZ 100 | PNCE 100 | 24800 | 0.42 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | CH | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Ø M10 × 1.25 | 40 | 35 | 30 | 25 | 20 | 10 | 0.1 | Ø 17 (-0.2) | Ø 26 | Ø 5.5 (H13) | 15 | ||||
|
|
|
