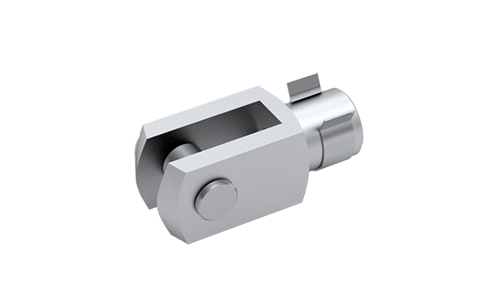

Piston rod accessory SGS, galvanized or stainless steel AISI 304
SG
Dimensions in mm.
Read more
Product Information
Material: Galvanized or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SG 32 | PNCE 32 | Galvanized steel | F PNCE | 0.09 | ||||
|
|
|
2 | SG 32 CR | PNCE 32 | Stainless steel AISI 304 | F PNCE | 0.09 | ||||
|
|
|
2 | SG 40 | PNCE 40 | Galvanized steel | F PNCE | 0.15 | ||||
|
|
|
2 | SG 40 CR | PNCE 40 | Stainless steel AISI 304 | F PNCE | 0.15 | ||||
|
|
|
2 | SG 50 | PNCE 50 | Galvanized steel | F PNCE | 0.33 | ||||
|
|
|
2 | SG 50 CR | PNCE 50 | Stainless steel AISI 304 | F PNCE | 0.33 | ||||
|
|
|
2 | SG 63 | PNCE 63 | Galvanized steel | F PNCE | 0.33 | ||||
|
|
|
2 | SG 63 CR | PNCE 63 | Stainless steel AISI 304 | F PNCE | 0.33 | ||||
|
|
|
2 | SG 80 | PNCE 80 | Galvanized steel | F PNCE | 0.68 | ||||
|
|
|
2 | SG 80 CR | PNCE 80 | Stainless steel AISI 304 | F PNCE | 0.68 | ||||
|
|
|
2 | SG 100 | PNCE 100 | Galvanized steel | F PNCE | 0.68 | ||||
|
|
|
2 | SG 100 CR | PNCE 100 | Stainless steel AISI 304 | F PNCE | 0.68 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
M10 × 1.25 | 52 (±0.5) | 26 | 10 (B13) | 20 (±0.5) | 40 | 20 | Ø 10 (h11) | Ø 18 | ||||
|
|
|
