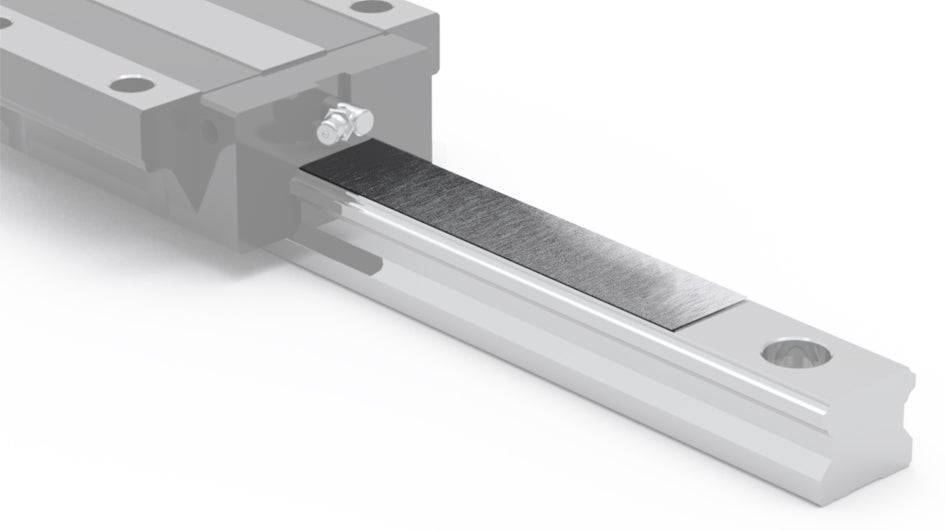

ST Stainless Dustproof Tape
Tape for improved rail sealing

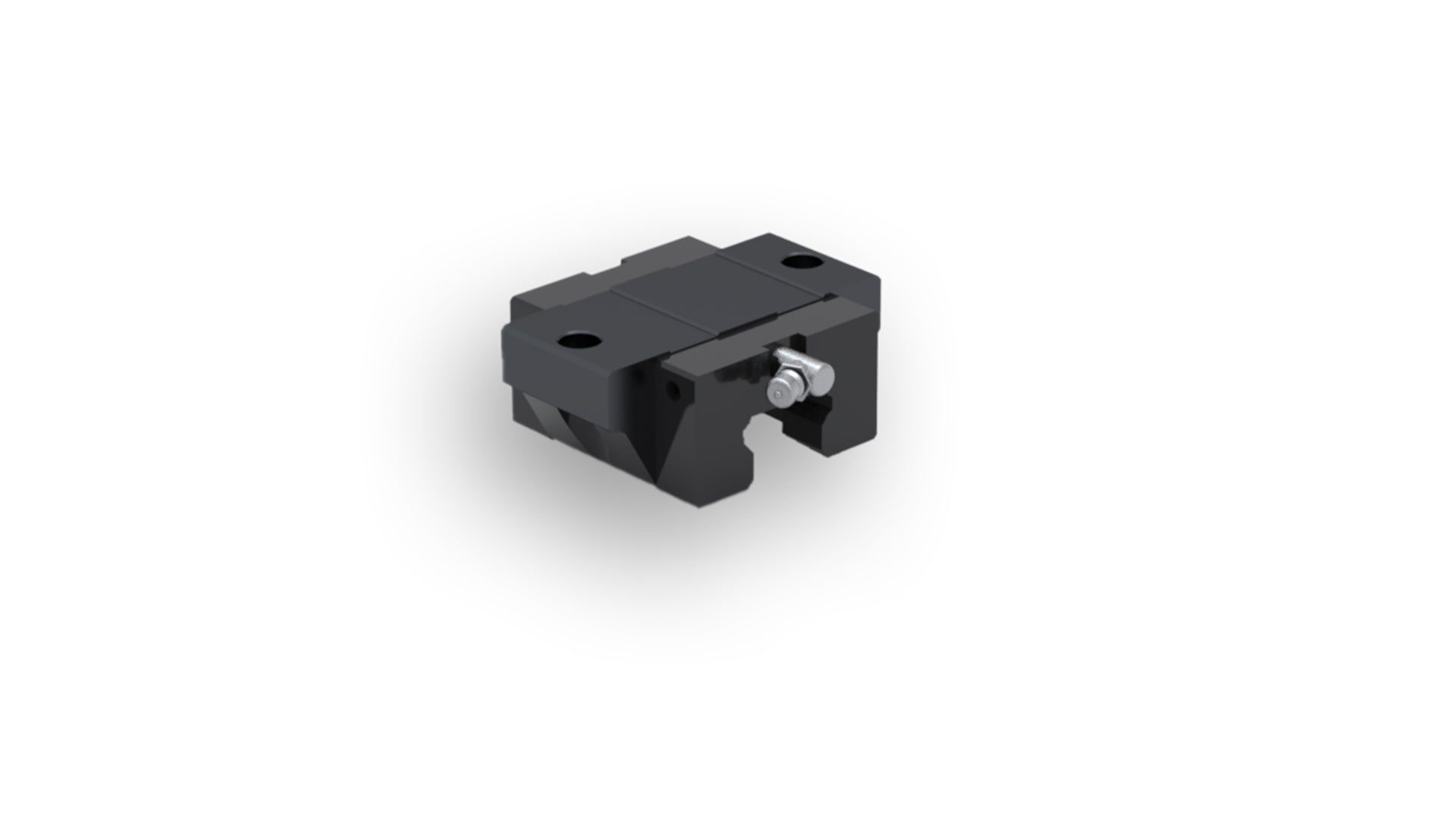

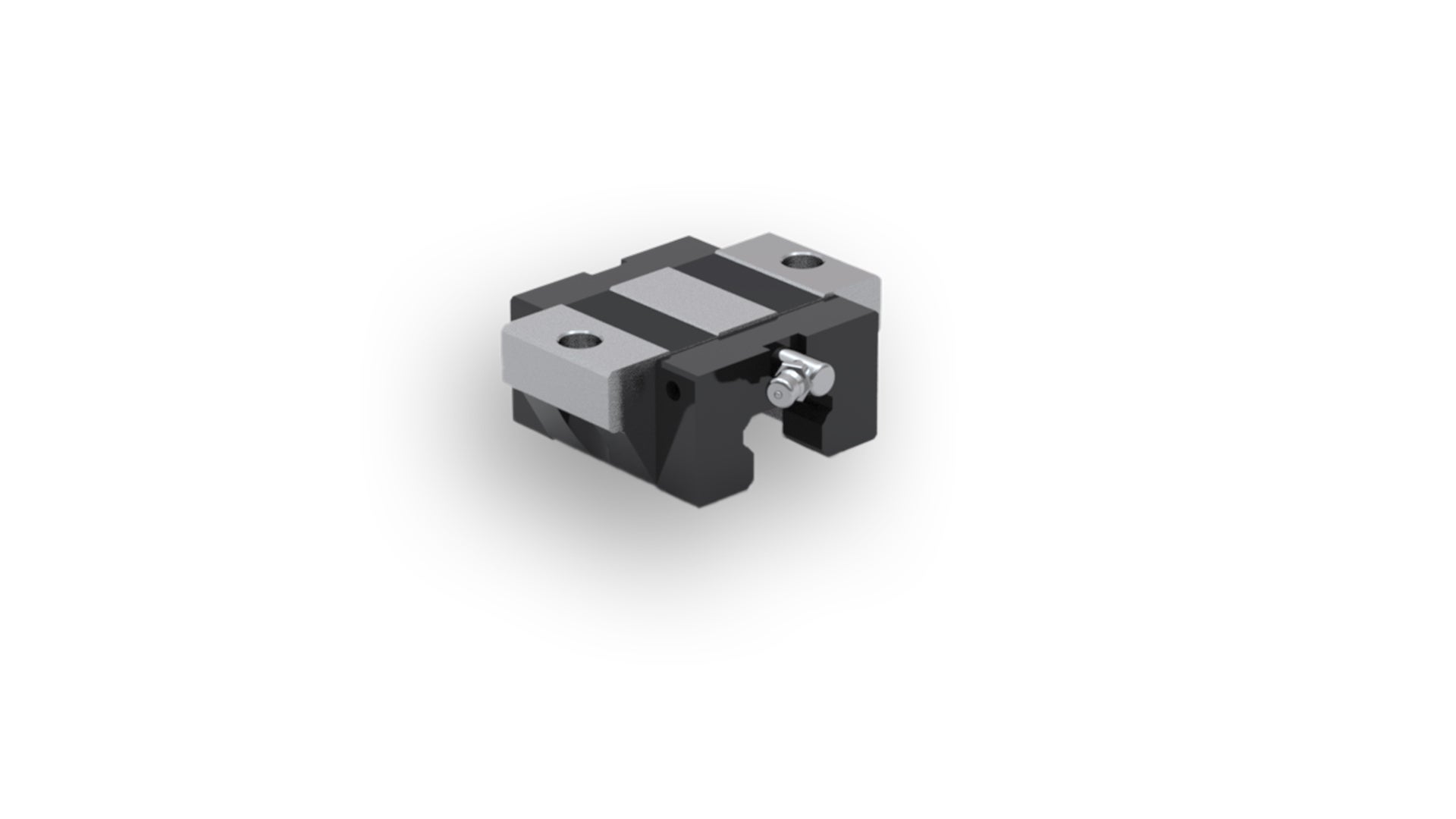

SBI FV Raydent
Super short block with flange. Side nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Read more
* S: Bolt size for bottom mounting type of block
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Dynamic Moment Mr (Nm) | Dynamic Moment Mp (Nm) | Dynamic Moment My (Nm) | Weight Block (g) | Weight Rail (g/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 5800 | 12800 | 40 | 30 | 30 | 18 | 14 | 14 | 100 | 1300 | |||
|
|
|
1 | 9400 | 20200 | 120 | 100 | 100 | 56 | 47 | 47 | 240 | 2200 | |||
|
|
|
2 | 12400 | 26100 | 190 | 170 | 170 | 90 | 81 | 81 | 370 | 3000 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L | H | W | W1 | W2 | L1 | H1 | h2 | S1 | S2 | D x d x g1 | Hole Pitch (P) | N1 | N2 | N3 | P2 | E | G | M | P | S | T | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
39.9 | 24 | 47 | 15 | 16 | 21.3 | 13 | 21 | 4.5 | 3.8 | 7.5 x 4.5 x 5.5 | 60 | M4x0.7 | Ø 3.5 | 3.4 | 38 | 5.5 | 20 | M5 | 60 | M4 | 8.8 | 3000 | |||
|
|
|
49.1 | 28 | 63 | 20 | 21.5 | 27.1 | 16.5 | 23.4 | 4.8 | 4 | 9.5 x 6 x 8.5 | 60 | M6x0.75 | Ø 3.5 | 5 | 53 | 12 | 20 | M6 | 60 | M5 | 8 | 4000 | |||
|
|
|
52.6 | 33 | 70 | 23 | 23.5 | 30.6 | 20 | 27.5 | 5.4 | 5.4 | 11 x 7 x 9 | 60 | M6x0.75 | Ø 3.5 | 5 | 57 | 12 | 20 | M8 | 60 | M6 | 9 | 4000 |
-
-

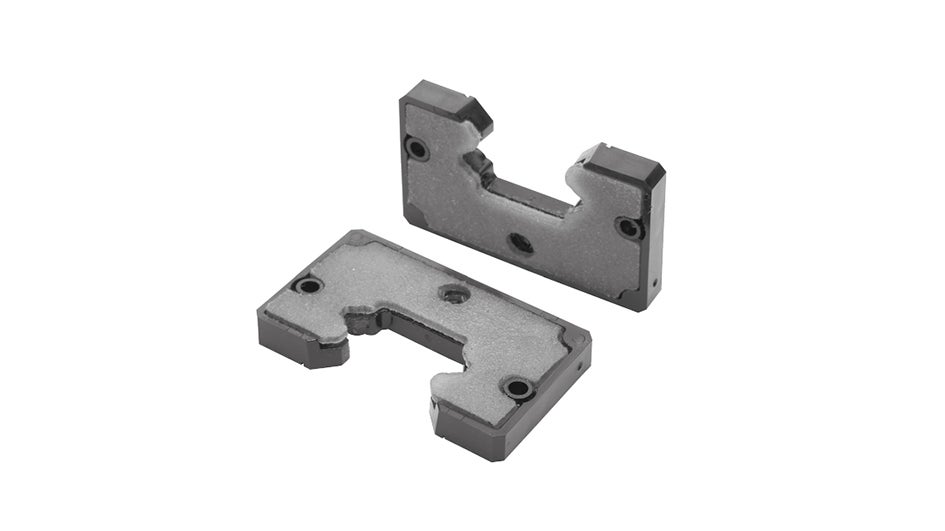

DF Seal High Dust Proof
Dustproof end seal -
MF Container Self Lubricant
Self-lubricant container, end seal -

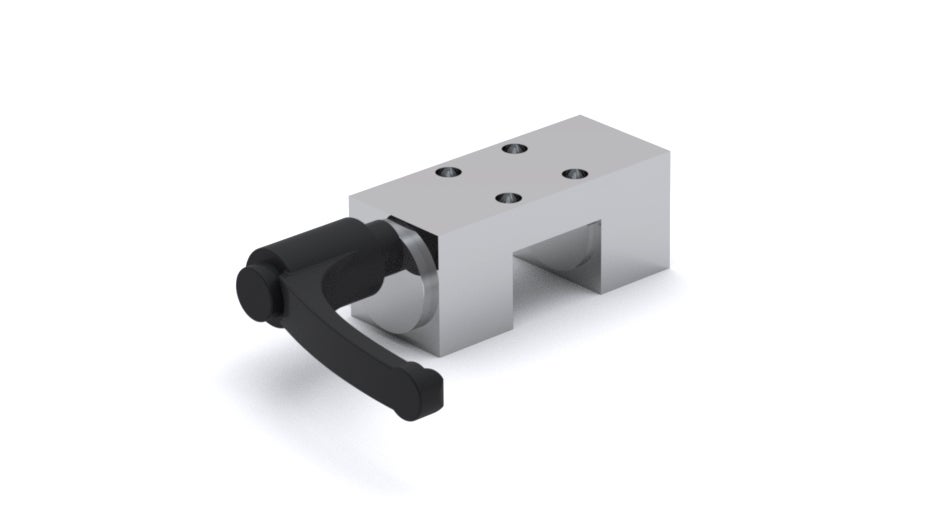

RCS Clamping Element
Manually operated clamping element. Compatible with Linear Rail SBI. -

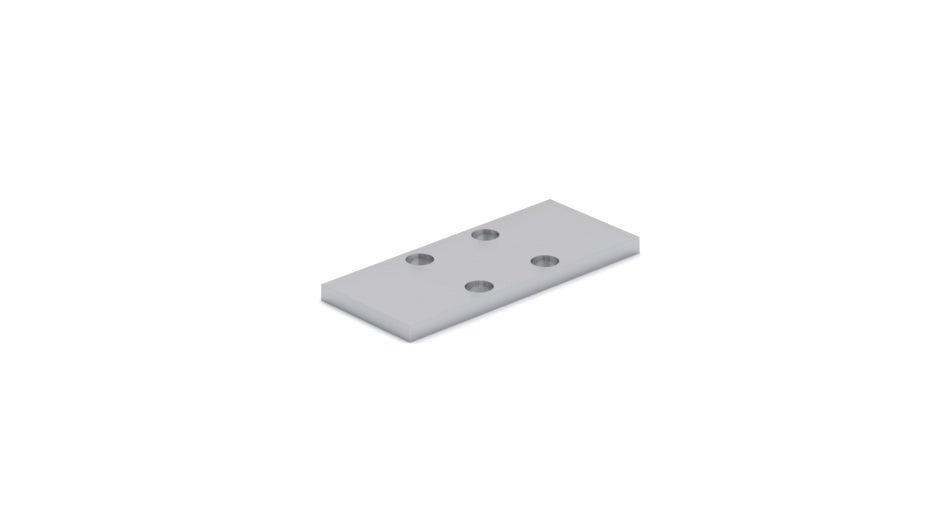

Adapter Plate for RCS Clamping Element
To compensate for different block heights -

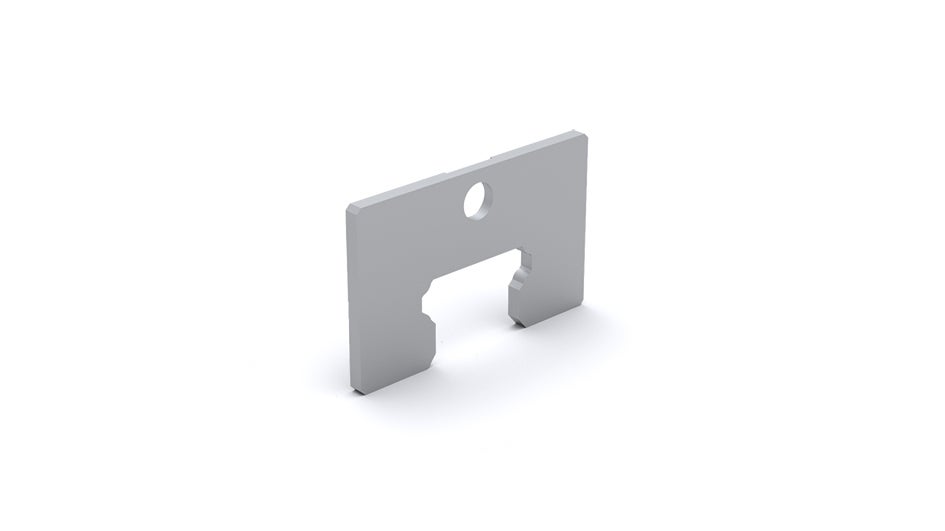

ZZ Steel Scraper
Protects block from contaminants -

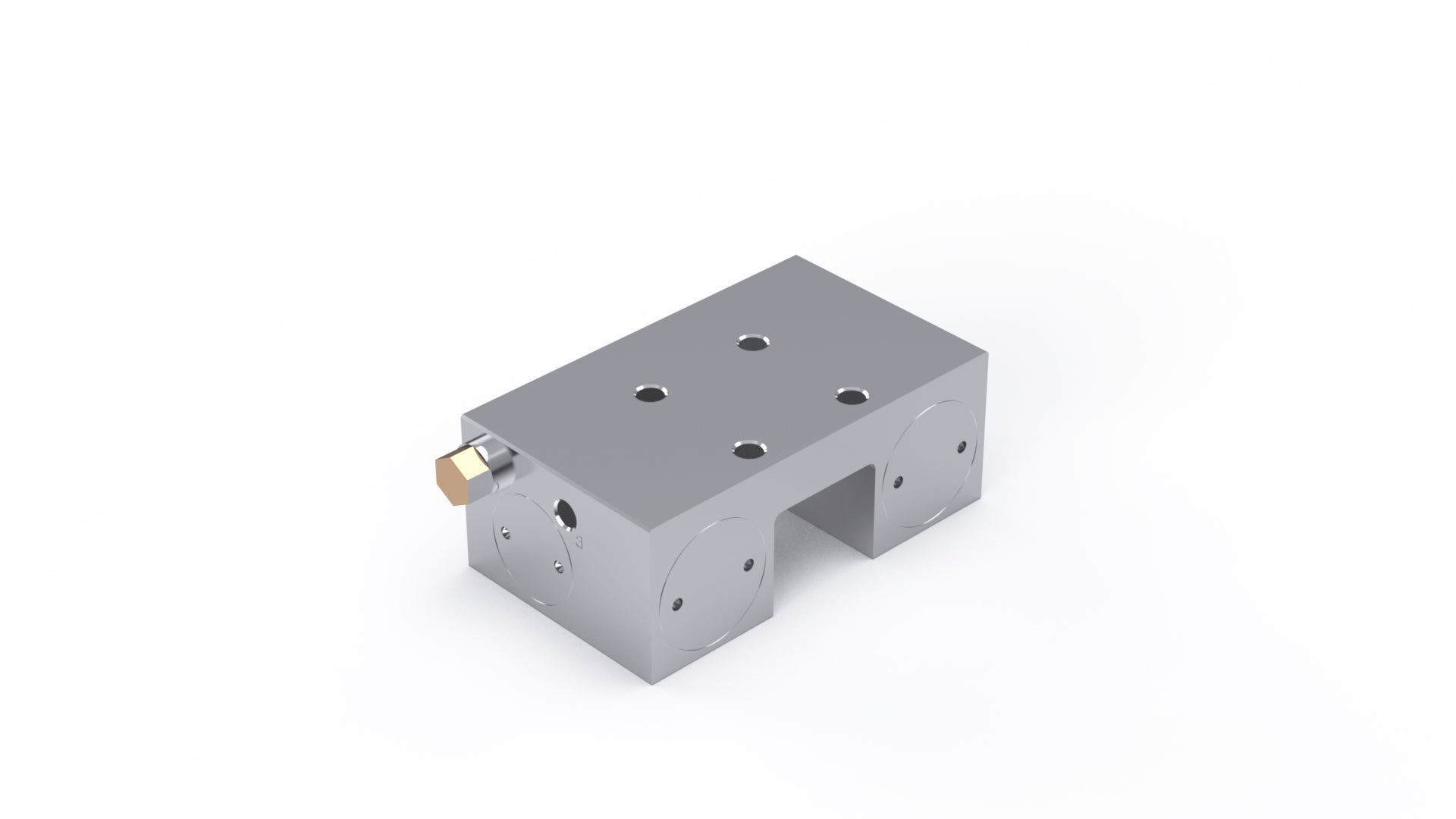

MK Clamping Element
Pneumatic clamping element, normally open. Compatible with Linear Rail SBI. -

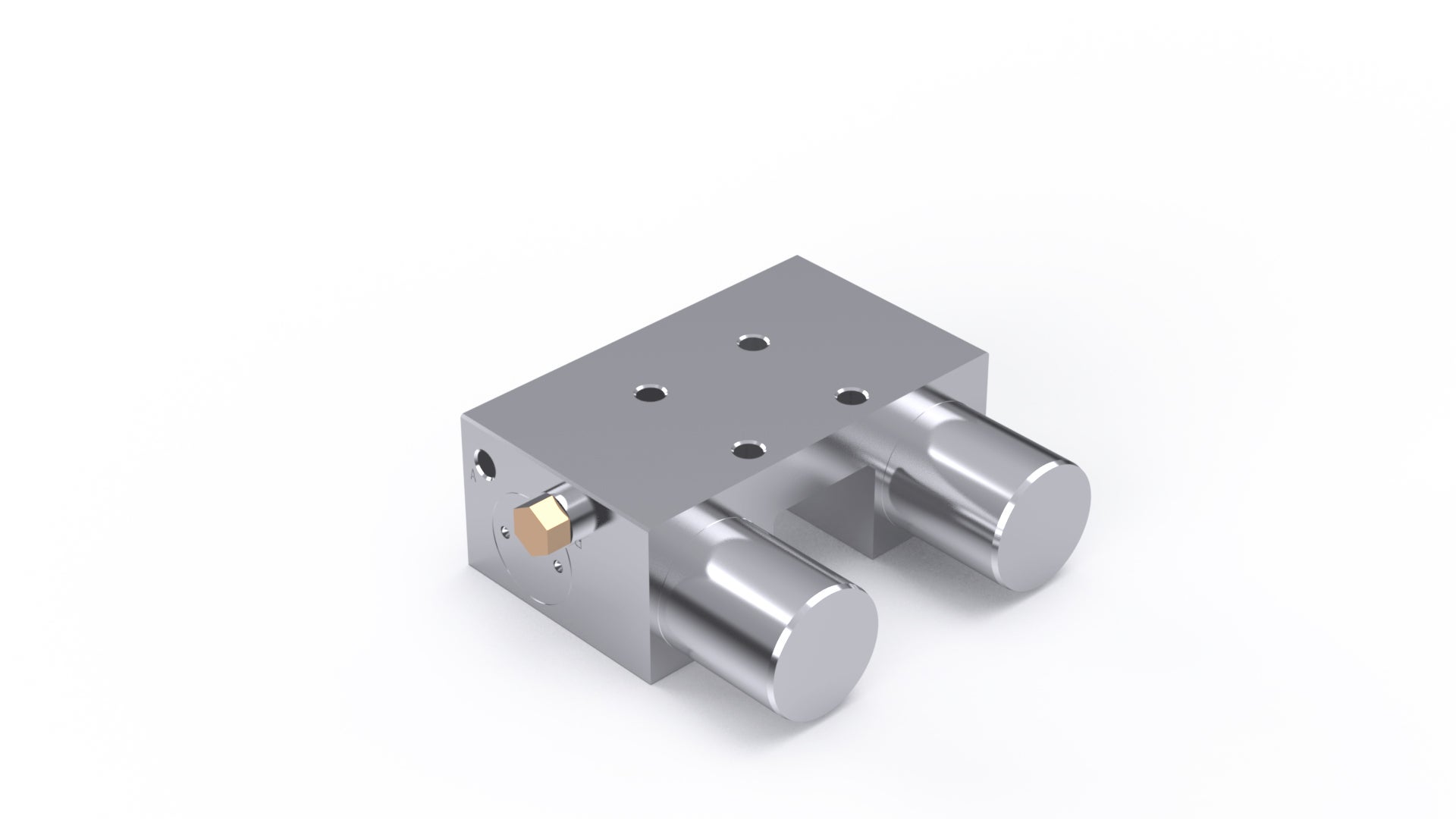

MKS Clamping Element
Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail SBI.
-

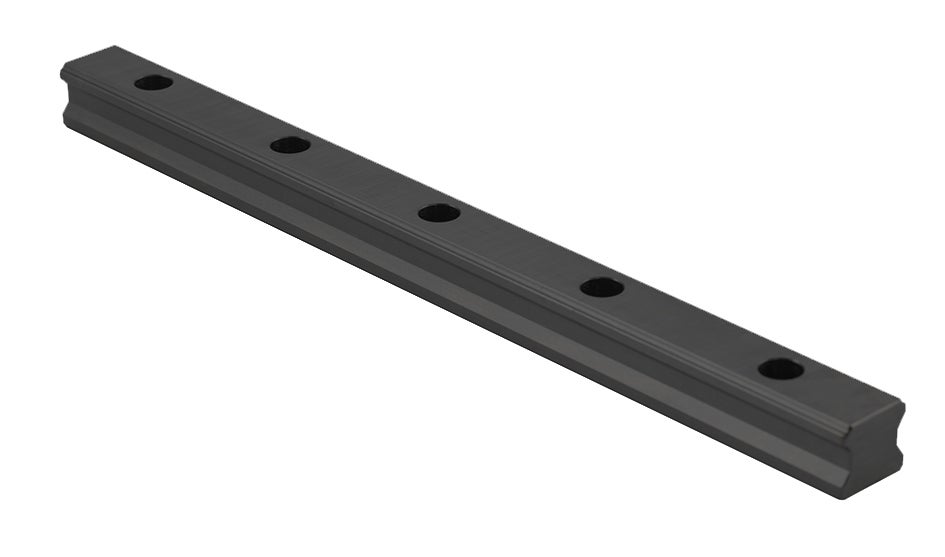

Standard Rail SBI Raydent
Counterbore from above – Raydent Surface Treatment -

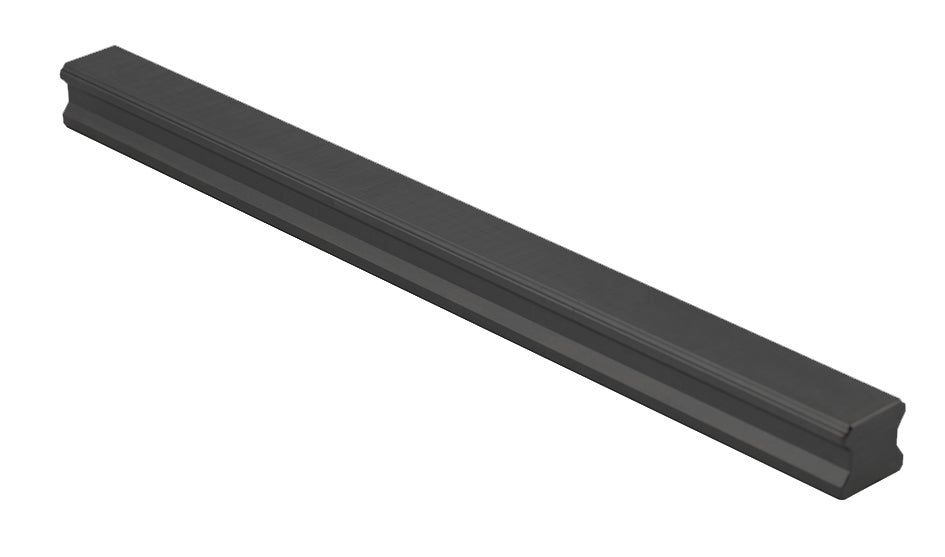

Bottom Mounting Rail SBI-B Raydent
Tapped from the bottom – Raydent Surface Treatment -
Standard Front Mounted Grease Nipple
Compatible with Linear Rail SBI. -

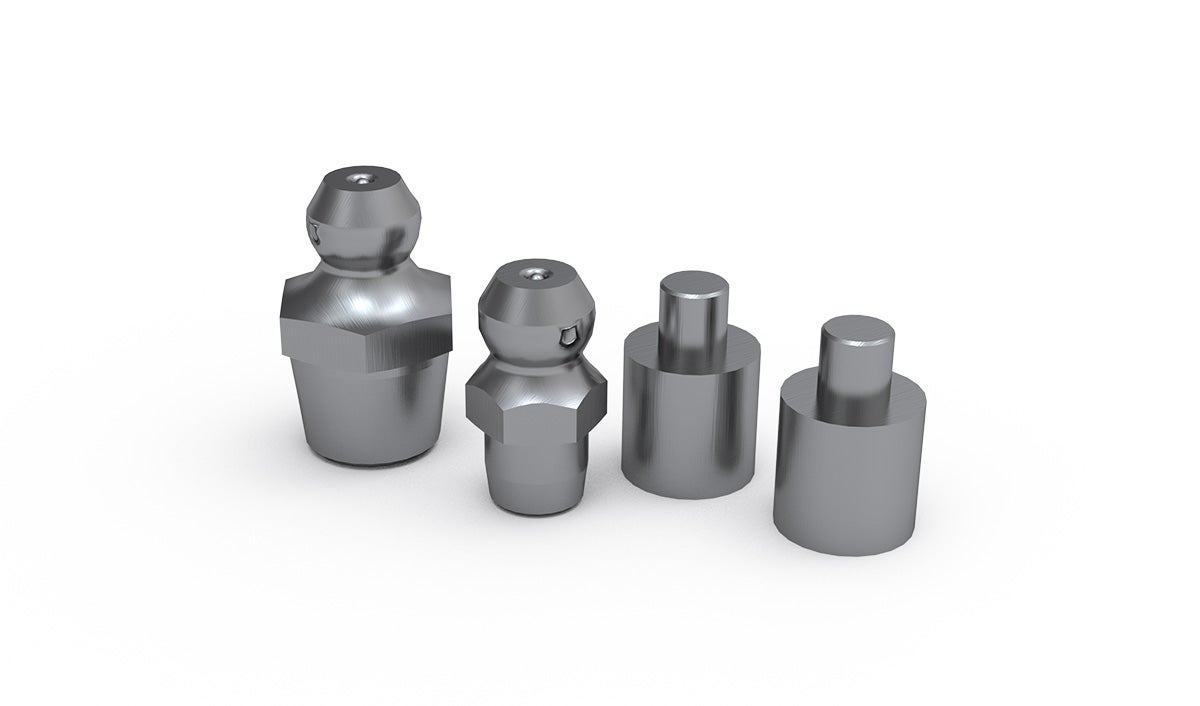

Side Mounted Grease Nipple
Compatible with Linear Rail SBI.
-

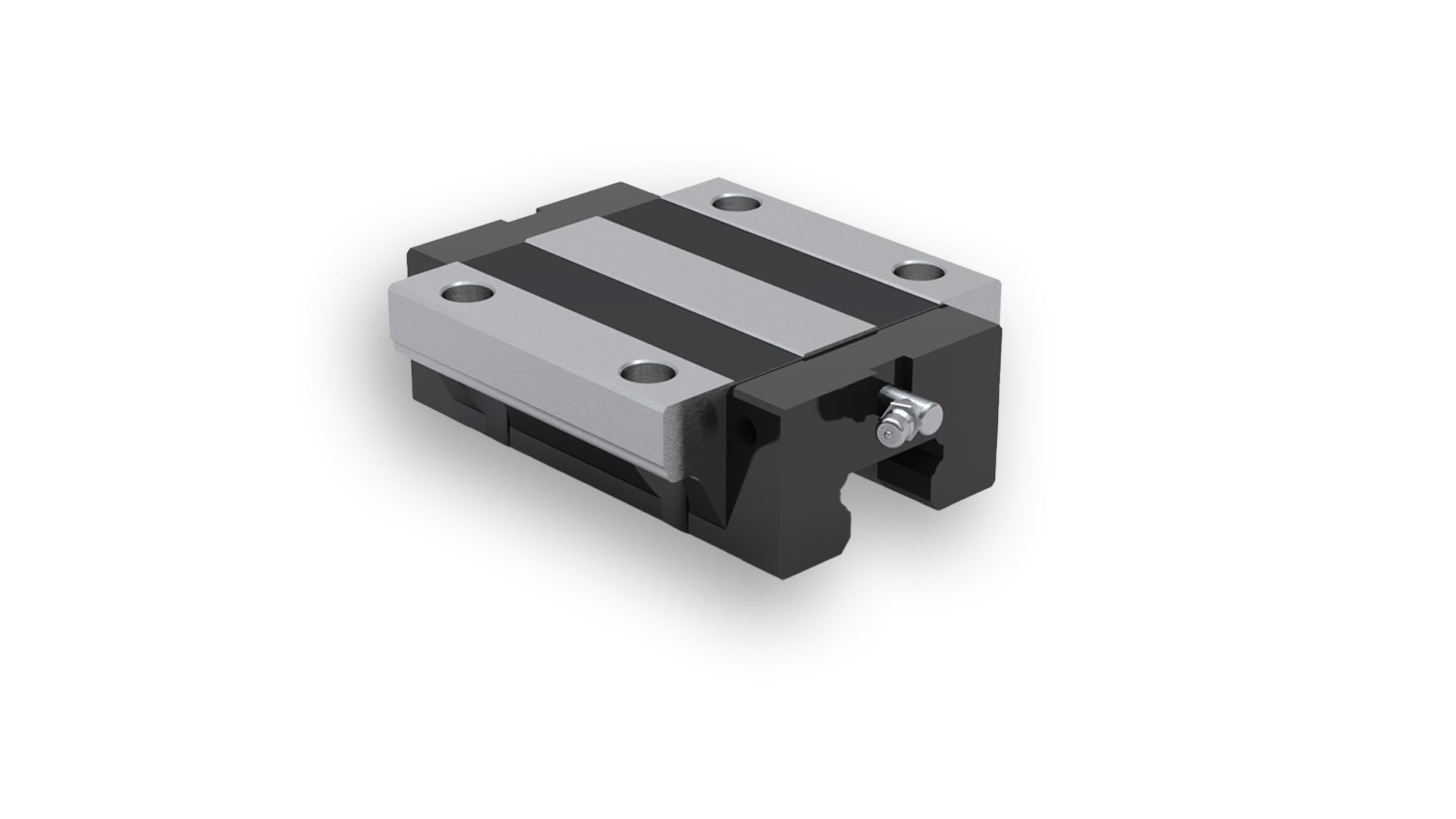

SBI FL
Flanged – normal length – standard height (most common) -

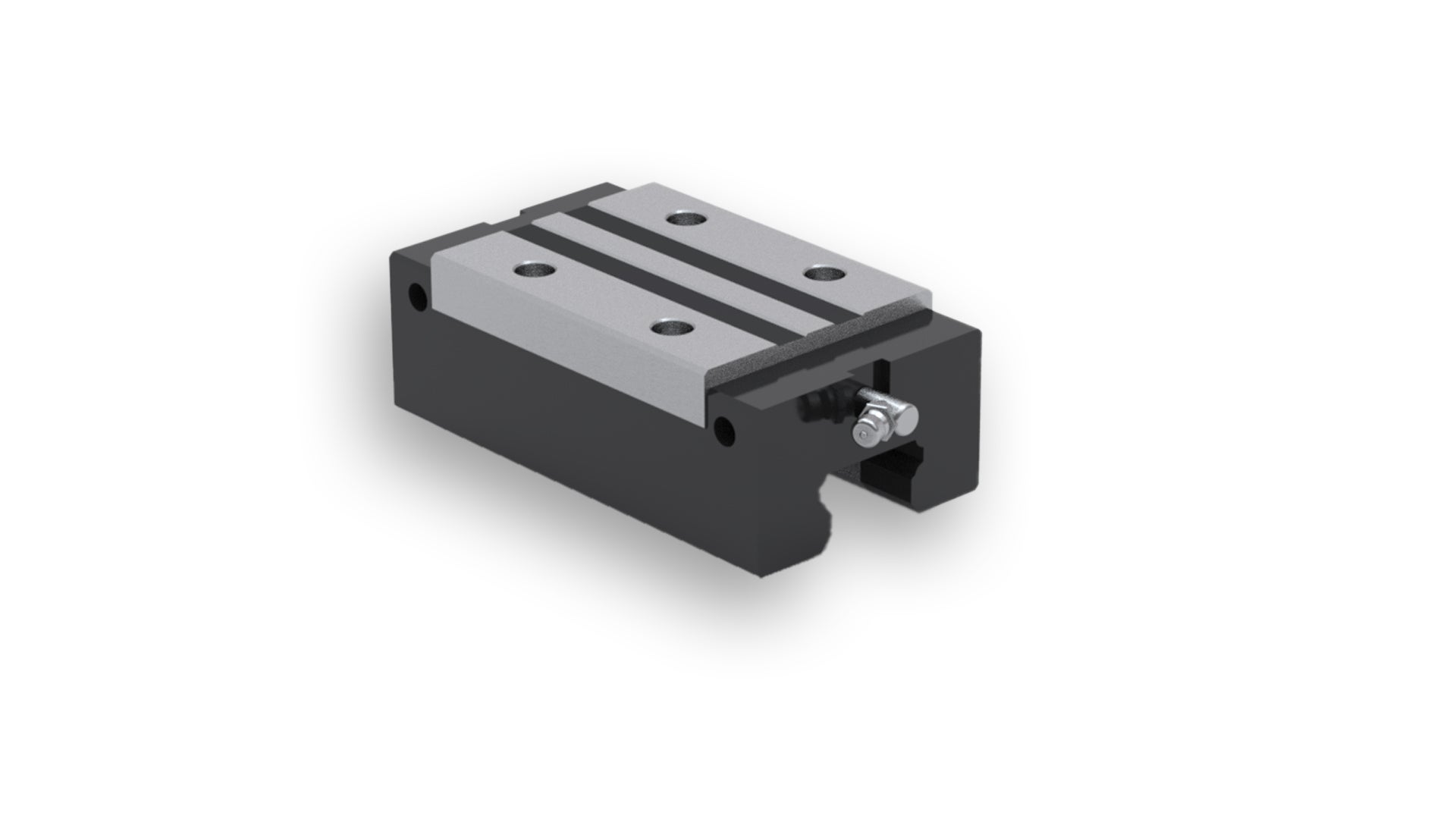

SBI SL
Slim – normal length – standard height -

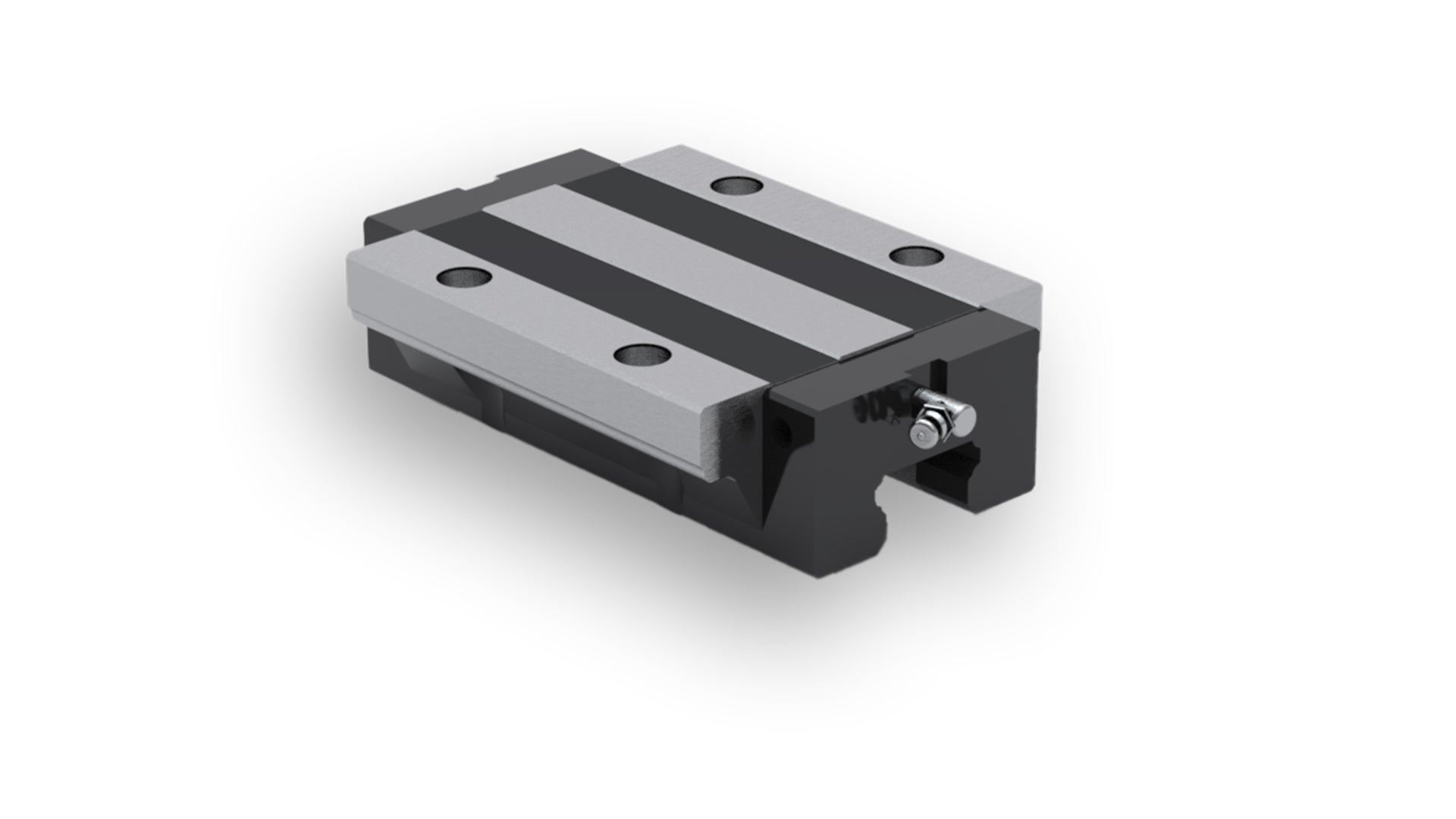

SBI FLL
Flanged – long – standard height -

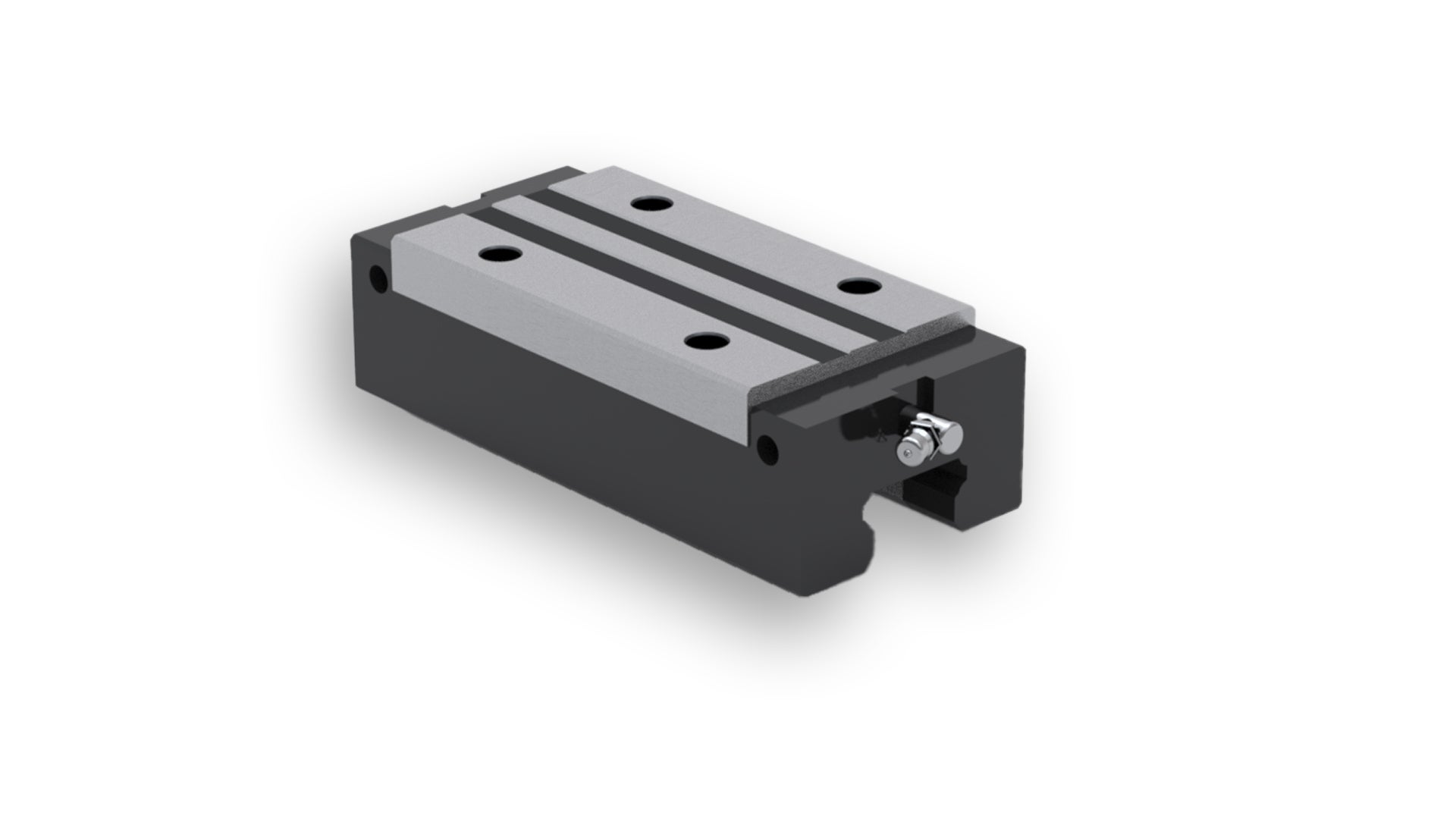

SBI-SLL
Slim – long – standard height -

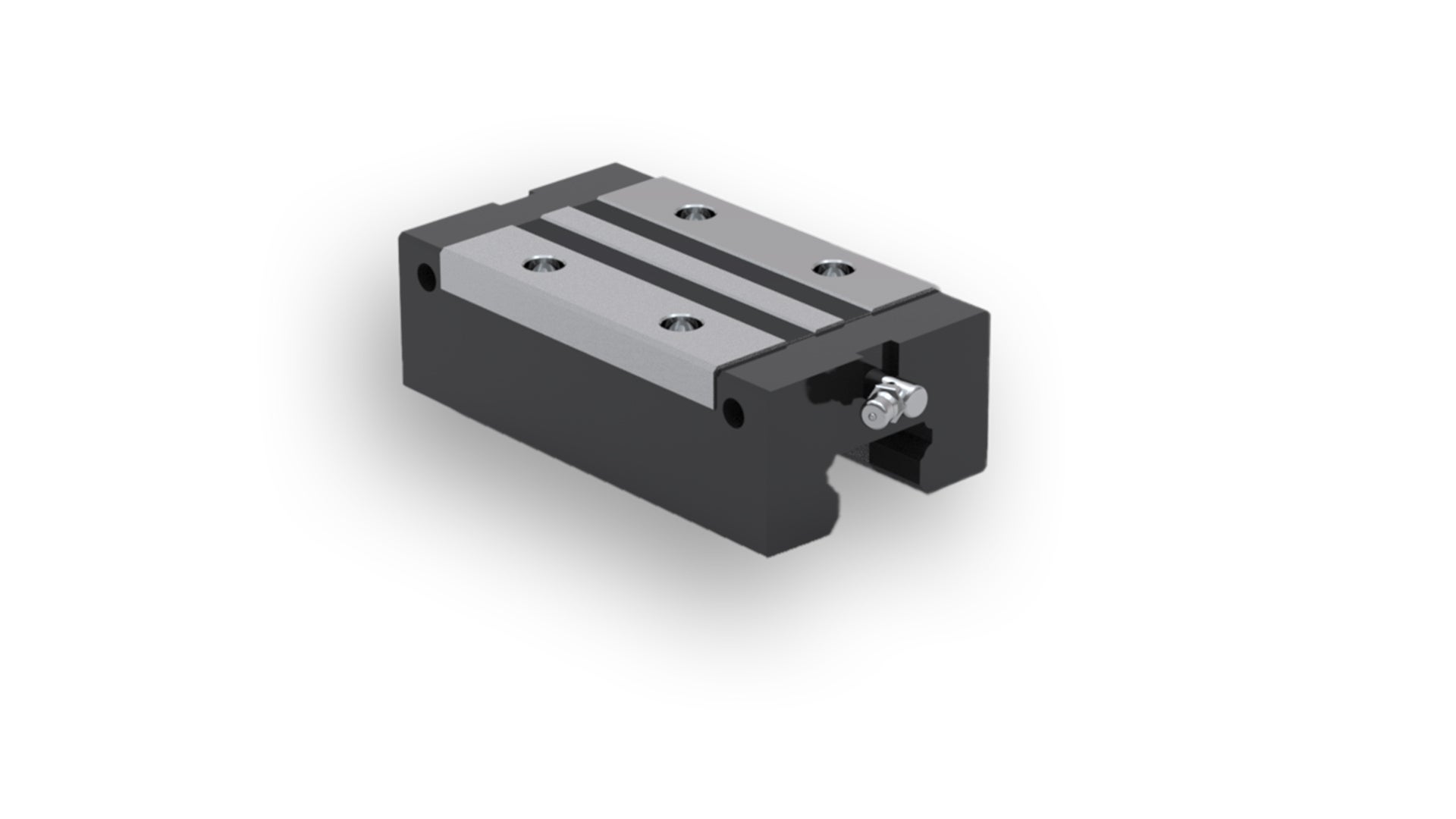

SBI-HL /-HLS /-CL /-CLS
Slim – normal length – low height -
SBI HLL / SBI CLL
Slim – long – low height -
SBI FV
Flanged – short – low height -

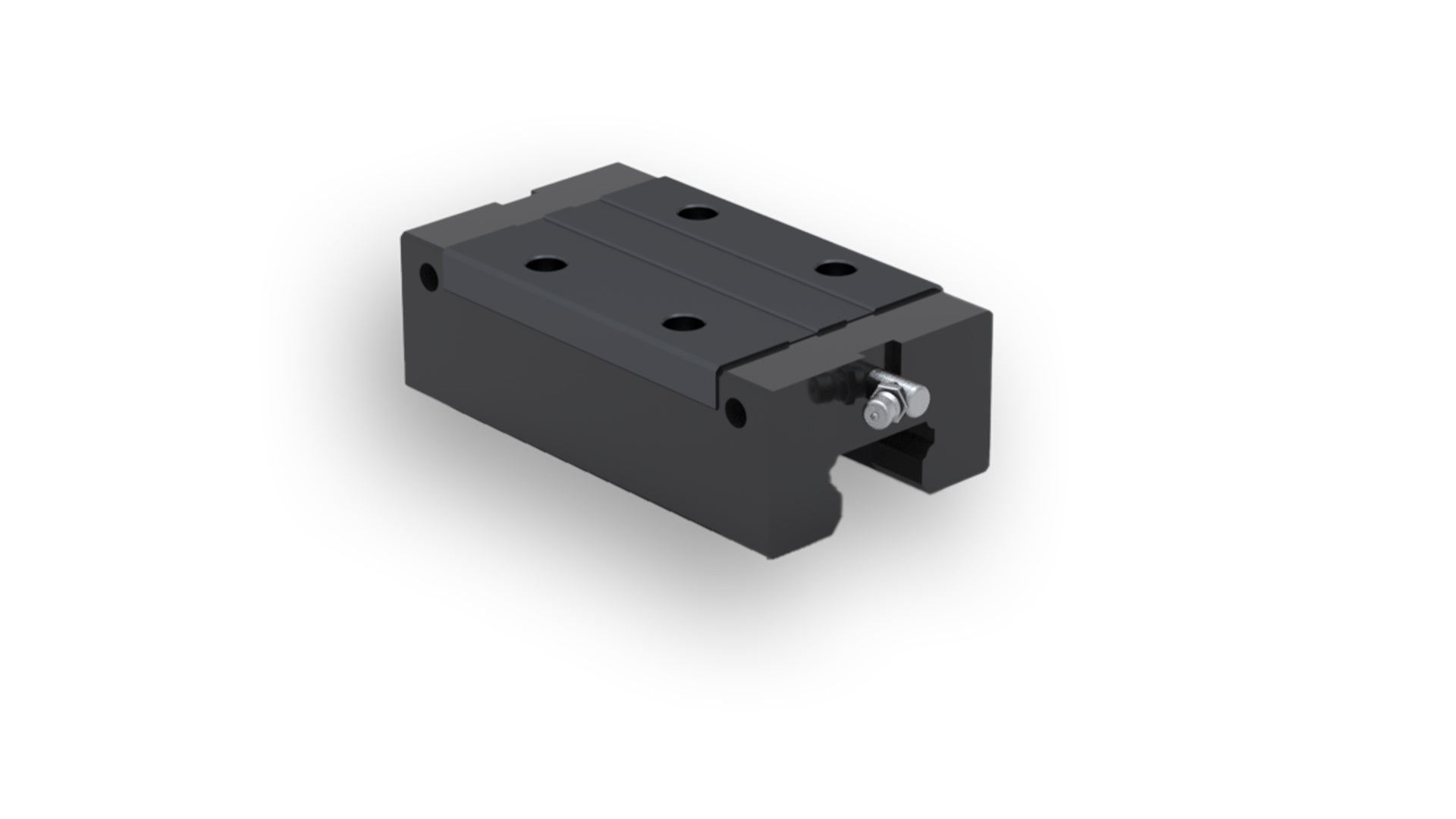

SBI HL/HLS/CL/CLS Raydent
Slim – normal length – low height – Raydent Surface Treatment -

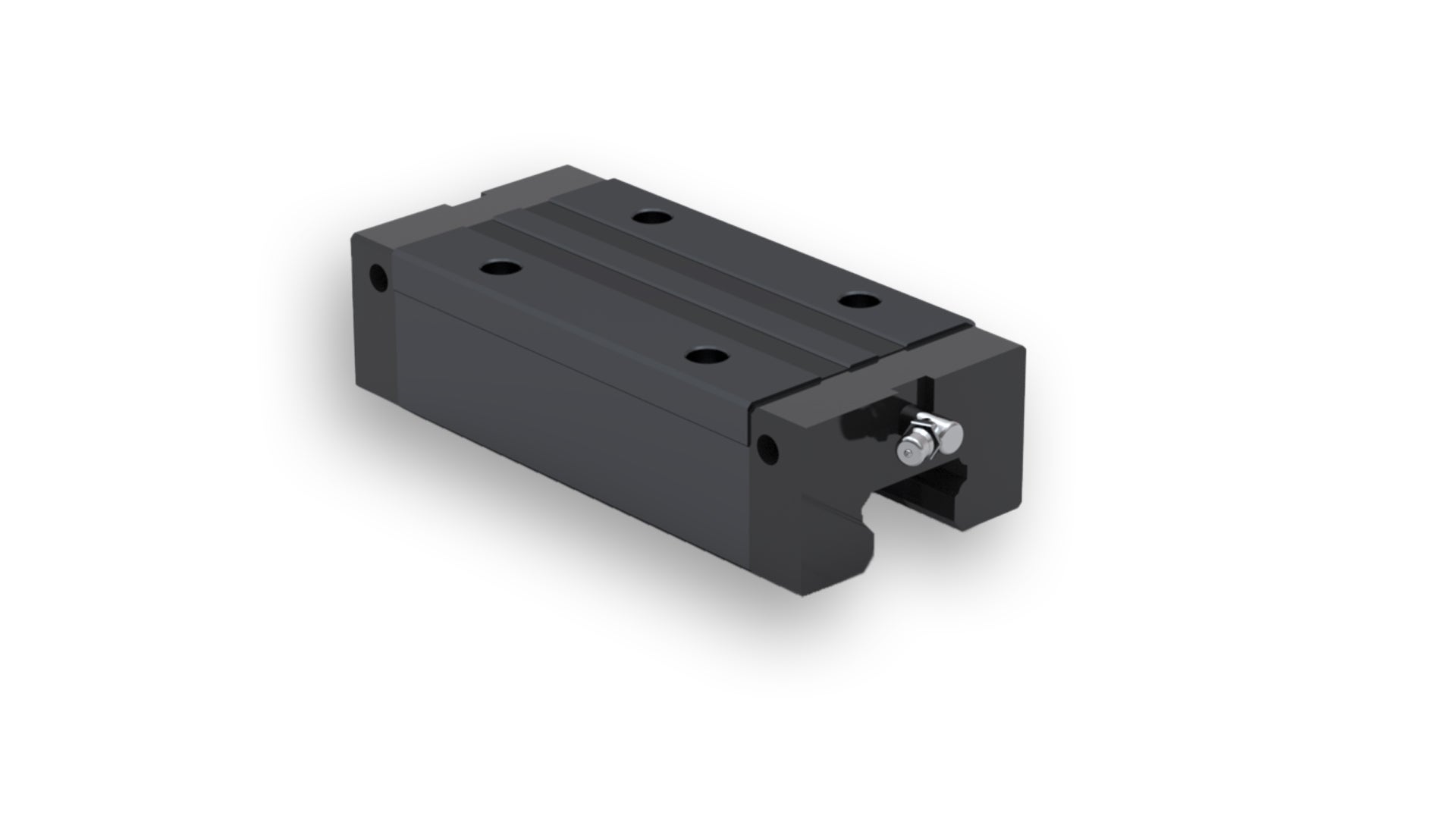

SBI HLL/CLL Raydent
Slim – long – low height – Raydent Surface Treatment -

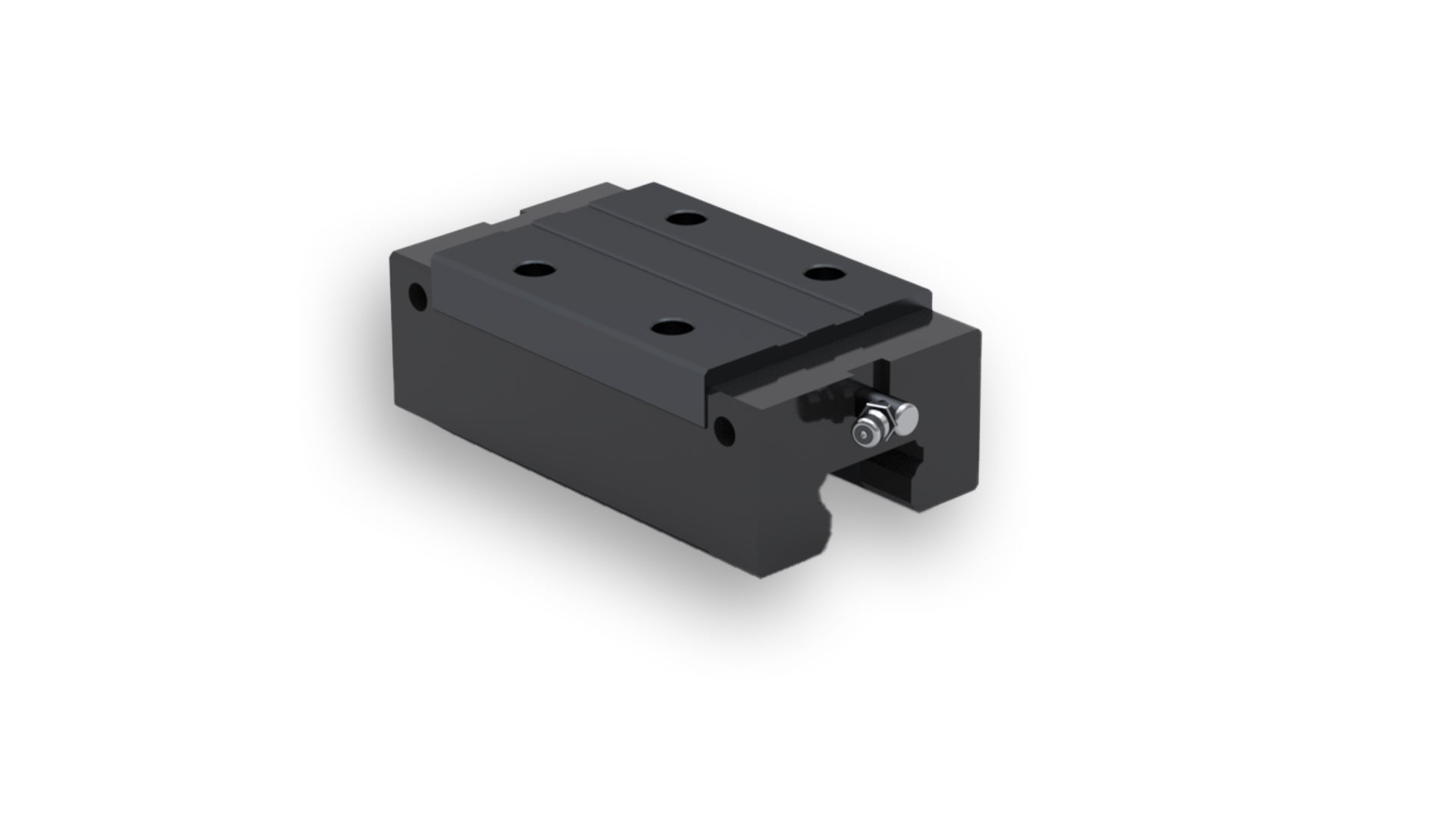

SBI SL Raydent
Slim – normal length – standard height – Raydent Surface Treatment -
SBI FL Raydent
Flanged – normal length – standard height (most common) – Raydent Surface Treatment -

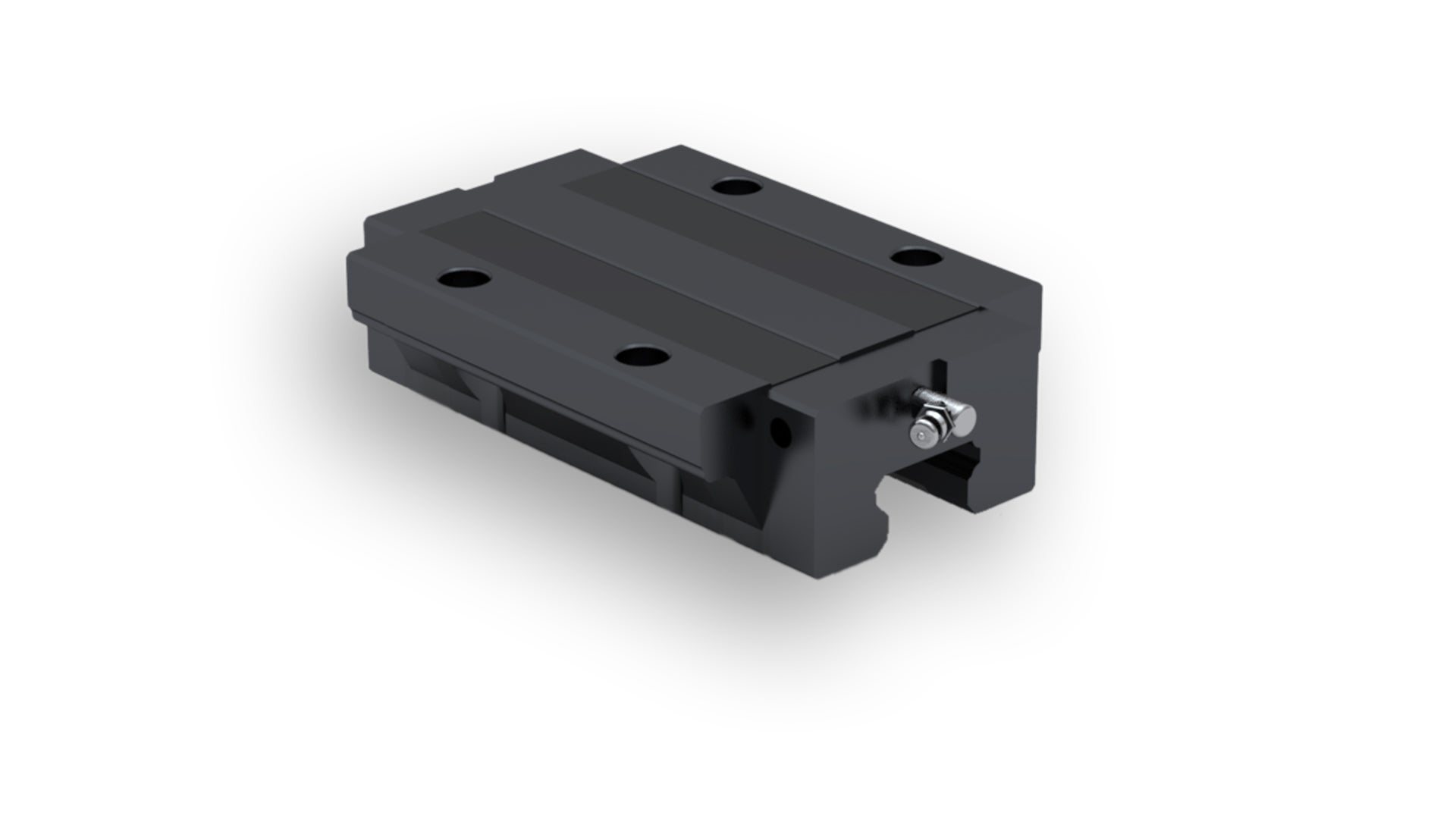

SBI FLL Raydent
Flanged – long – standard height – Raydent Surface Treatment -

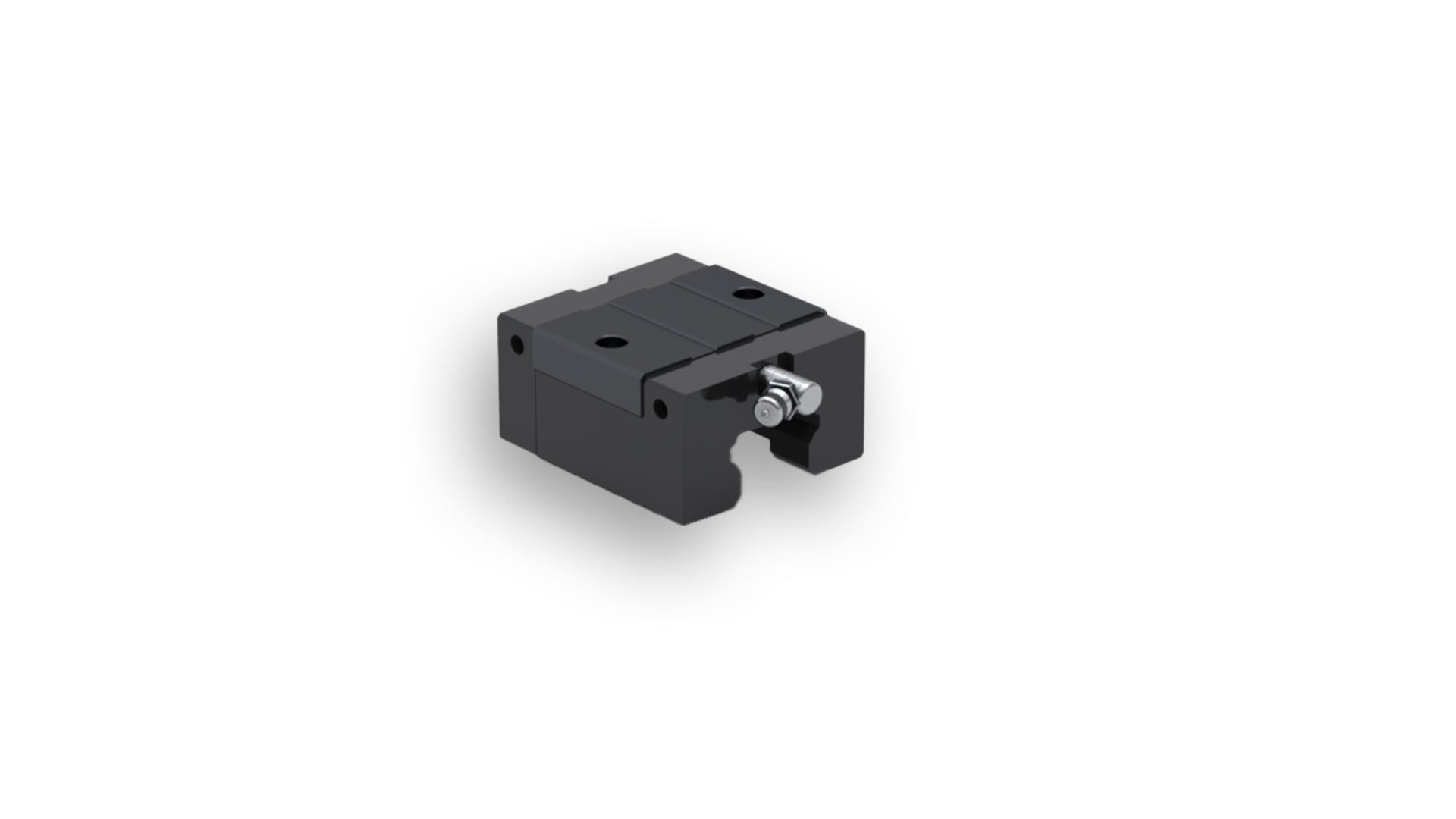

SBI SV Raydent
Slim – short – low height – Raydent Surface Treatment -

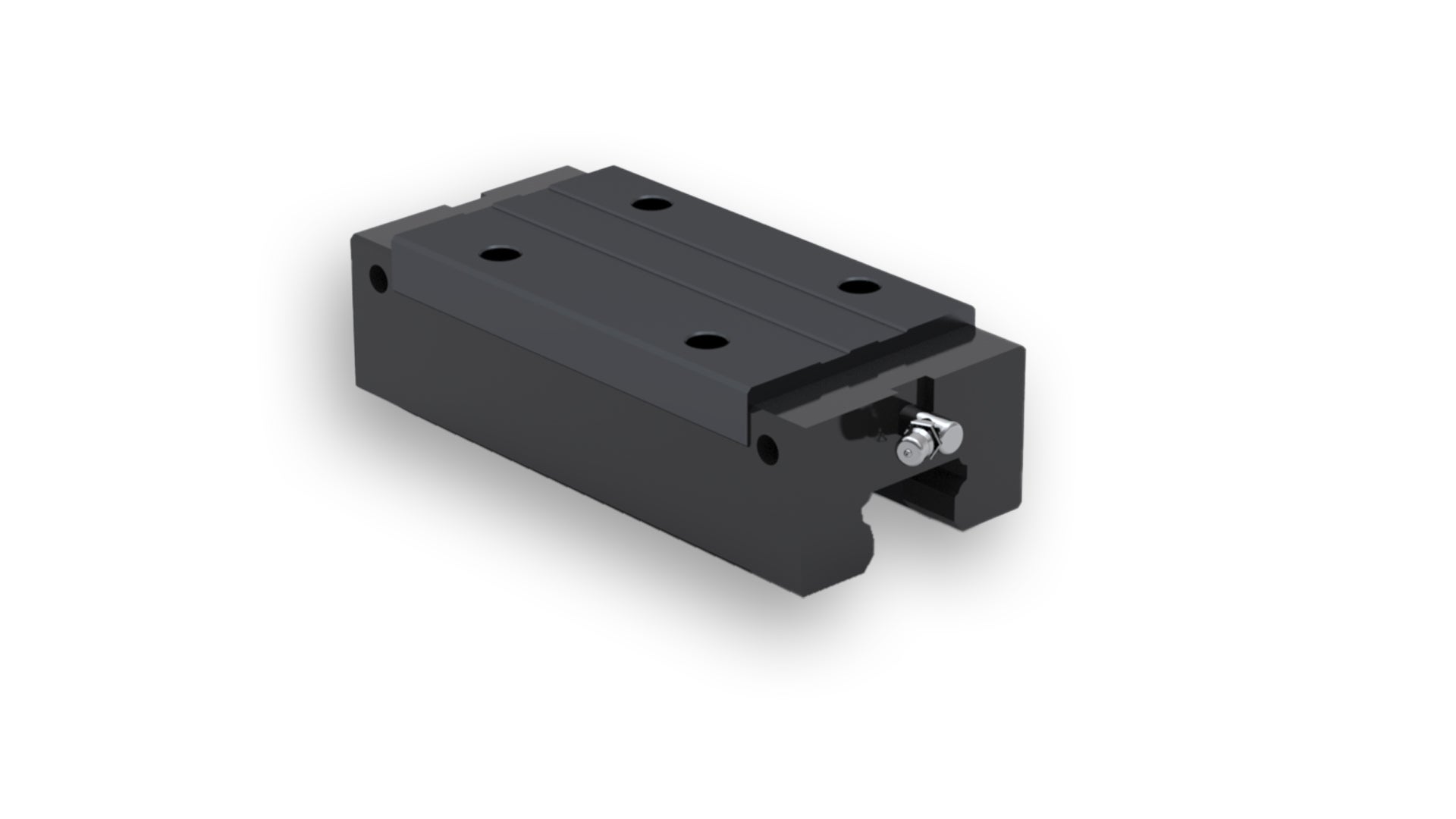

SBI SLL Raydent
