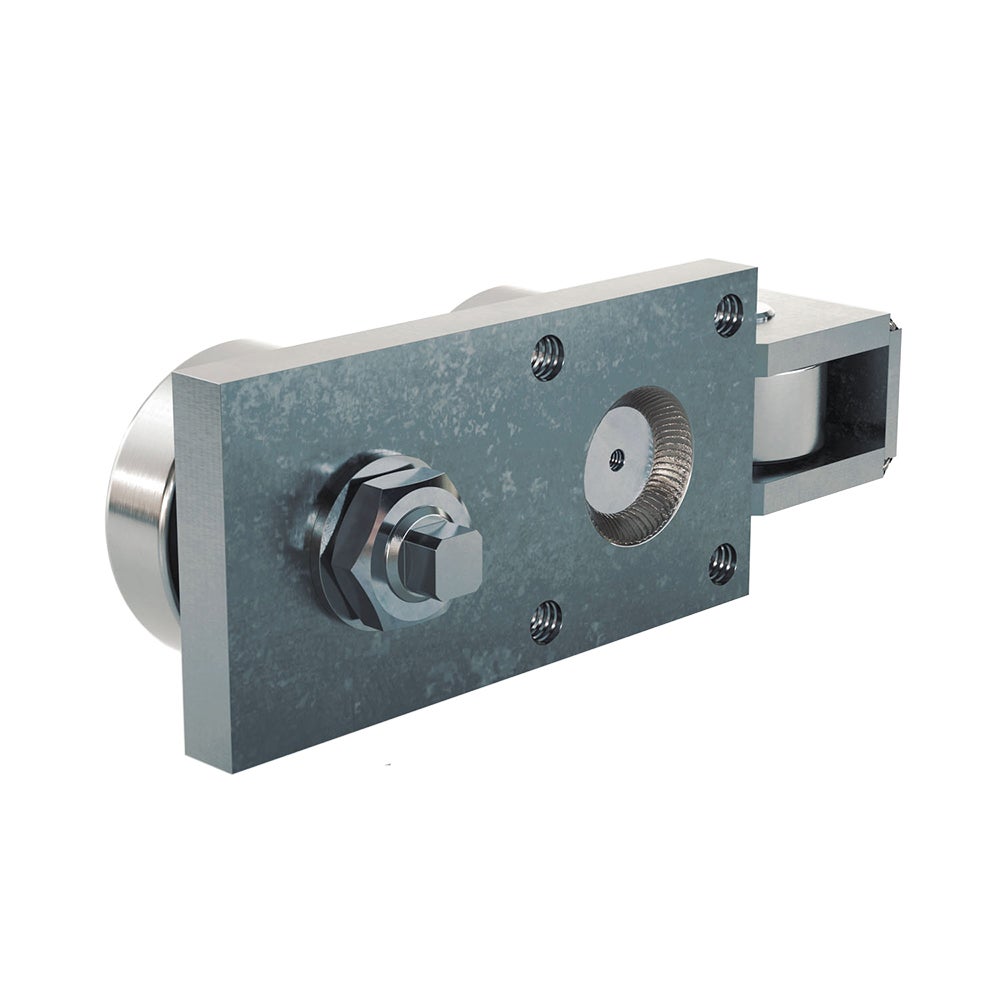

SFE---.5200

Heavy duty guideway unit axial bearing with 40 % higher load capacity
Excentric bearing adjustable to minimize clearance.
Lubricated for lifetime.
Special dimensions on request.

Dimensions in mm.
Read more

Product Information

Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N)
Get quote 2 8870 7000
Get quote 2 11400 11000
Get quote 2 12870 11000
Get quote 2 20370 13000
Get quote 2 24060 20000
Get quote 2 33440 20000
Get quote 2 51940 20000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote A B C D E F G H I J K M N O P R S T U
Get quote 38 20 140 50 10 50 70 41.5 12 35 55 188 42.5 40 4xM10 62.5 62.7 70 2
Get quote 42 24 160 60 10 60 80 49 15 40 65 217 51 47 4xM12 70.1 70.1 80 2
Get quote 46 24 180 70 15 70 100 48.5 15 45 75 237 51.5 47 4xM12 77.7 77.7 85 2
Get quote 45 24 210 90 15 90 120 61 20 50 85 273 64 52 4xM16 88.4 88.4 100 2
Get quote 54 28 250 100 20 100 140 71.5 20 60 105 333 75 72 4xM16 107.1 107.7 120 2
Get quote 54 28 280 100 20 100 140 71.5 20 70 107 365 76 72 4xM16 123 123 140 2
Get quote 54 28 325 120 20 120 160 79 25 80 80 - 83.5 72 4xM16 149 149 165 3
