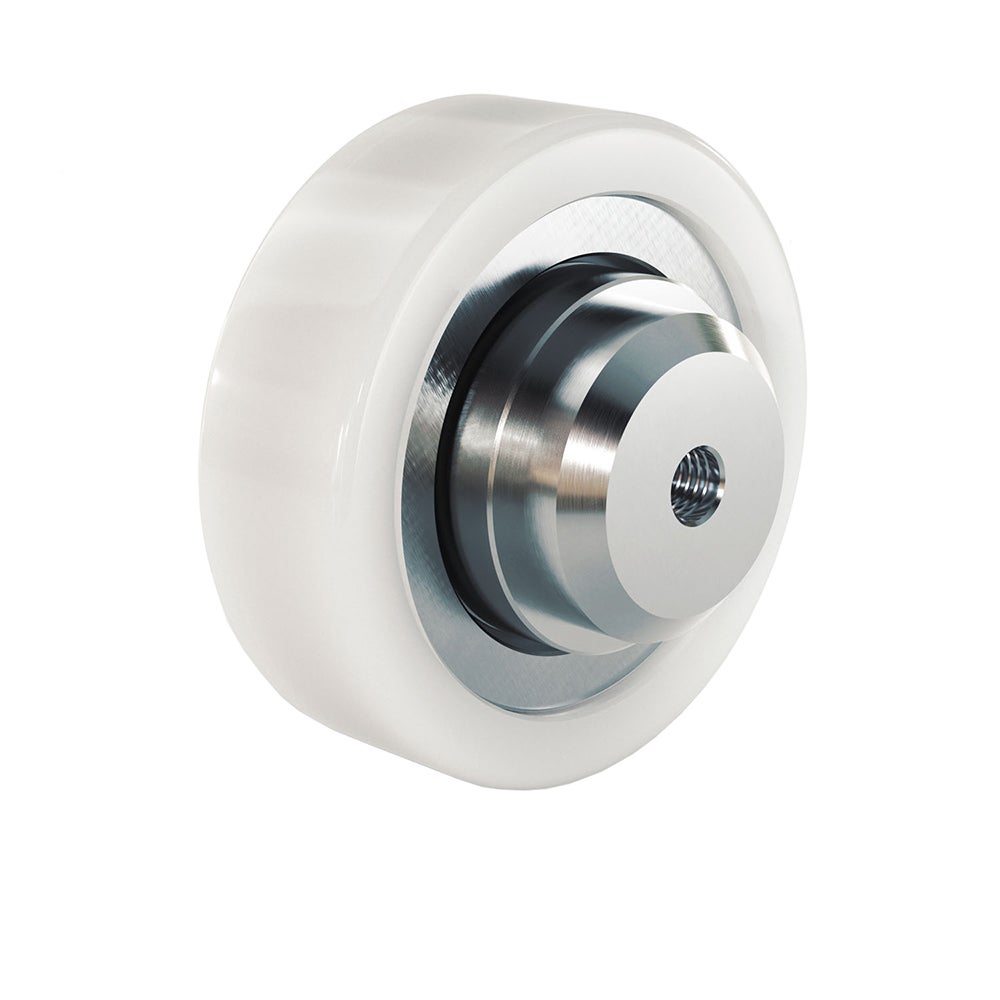

PAS ---.0360

• Polyamide roller combined – fixed with oilamide sliding block
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%

Use profile UP---.0730. See Fixing element rectangular and square.

Order example: Roller + fixing plate PAS040.0360/BQ 1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

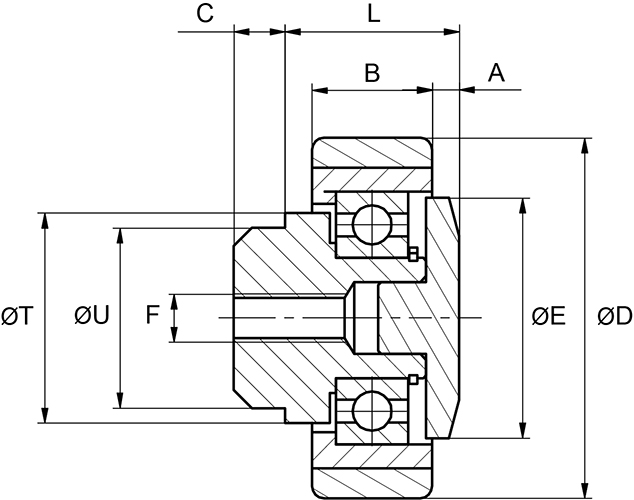

Dimensions in mm.
Read more

Product Information

Temperature: Maximum working temperature 80° C.
Speed: Travel speed up to 5 m/sec
Roller Type: Polyamide
Sizes Available: 40; 50; 60; 100
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile
Get quote 2 900 400 UP---.0730
Get quote 2 1200 400 UP---.0730
Get quote 2 1500 600 UP---.0730
Get quote 2 2500 600 UP---.0730

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B C D E F L T U
Get quote 2.8 15 2.8 40 20 M6 24 25 20
Get quote 5 15 5 52.5 31 M8 27 35 30
Get quote 4.5 18 8.5 62.5 40 M8 29 35 30
Get quote 6.3 25 8 101.2 64 — 41 50 45
