SNFSCR
Safety nut for ball screw
FDCR

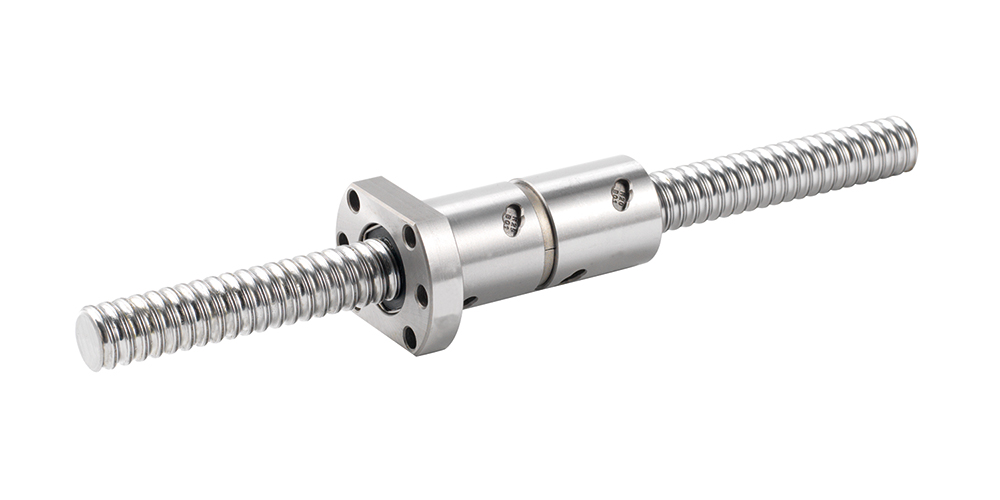

Double Nut with Flange (DIN 69051).
Standard nuts are with oil-seals.
Best combination for smooth and backlash-free operation with high rigidity.
A double nut must always be used pre-loaded and have to be assembled on the ball screw spindle by Rollco. Standard preload is P2, see “Preload and clearance” in Technical information.
Lead accuracy G5 or better is required for proper function. For best performance, a ground spindle is recommended.
All dimensions in mm.
Read more
Standard nuts are with oil-seals.
Best combination for smooth and backlash-free operation with high rigidity.
A double nut must always be used pre-loaded and have to be assembled on the ball screw spindle by Rollco. Standard preload is P2, see “Preload and clearance” in Technical information.
Lead accuracy G5 or better is required for proper function. For best performance, a ground spindle is recommended.
All dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Type | Dynamic Load Ratings Ca (N) | Static Load Ratings C0a (N) | Ball diameter | Turns x circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | BKN12 / FKN12 / BFN12 / FFN12 | A | 10291 | 11223 | 3.175 | 1 x 3 | |||
|
|
|
1 | BKN15 / FKN15 / BFN15 / FFN15 | A | 14833 | 19571 | 3.175 | 1 x 4 | |||
|
|
|
1 | BKN20 / FKN20 / BFN20 / FFN20 | A | 16716 | 25320 | 3.175 | 1 x 4 | |||
|
|
|
1 | BKN17 / FKN17 / BFN17 / FFN17 | A | 28263 | 36248 | 4.762 | 1 x 4 | |||
|
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | A | 18874 | 33383 | 3.175 | 1 x 4 | |||
|
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | A | 47422 | 76861 | 6.35 | 1 x 4 | |||
|
|
|
1 | BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 | B | 21013 | 42595 | 3.175 | 1 x 4 | |||
|
|
|
1 | BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 | B | 52964 | 98826 | 6.35 | 1 x 4 | |||
|
|
|
1 | BKN40 / WBK40DF / WBK40DFF / BFN40 | B | 58203 | 120791 | 6.35 | 1 x 4 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | D | H | L | Q | W | X | d0 x Lead |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
48 | 10 | 28 | 40 | 80 | M6 | 38 | 5.5 | 16 x 5 | |||
|
|
|
58 | 12 | 36 | 44 | 92 | M6 | 47 | 6.6 | 20 x 5 | |||
|
|
|
62 | 12 | 40 | 48 | 92 | M6 | 51 | 6.6 | 25 x 5 | |||
|
|
|
62 | 12 | 40 | 48 | 153 | M6 | 51 | 6.6 | 25 x 10 | |||
|
|
|
80 | 12 | 50 | 62 | 92 | M6 | 65 | 9 | 32 x 5 | |||
|
|
|
80 | 16 | 50 | 62 | 160 | M6 | 65 | 9 | 32 x 10 | |||
|
|
|
93 | 15 | 63 | 70 | 96 | M8 | 78 | 9 | 40 x 5 | |||
|
|
|
93 | 18 | 63 | 70 | 162 | M8 | 78 | 9 | 40 x 10 | |||
|
|
|
110 | 16 | 75 | 85 | 162 | M8 | 93 | 11 | 50 x 10 |
-
RSCR
Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw -
FSCR/FSCL
Ball nut with flange, for right & left lead screw (SR/SL), most common type -
FSER
Ball nut with flange, long lead, for right lead (SR) screw -
SFYAR
Ball nut with flange, overlead, for right lead (SCR) screw
