SFYAR

STOCK ITEM

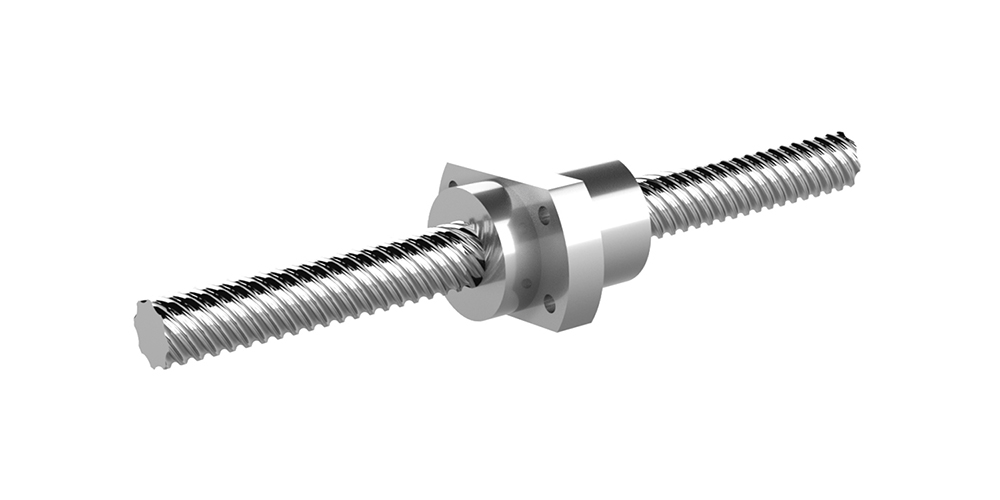

Single Nut with Flange, Over Lead.

All dimensions in mm.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Compatible with Dynamic Load Ratings Ca (N) Static Load Ratings C0a (N) Ball diameter Turns x circuits
1 BKN12 / FKN12 / BFN12 / FFN12 4930 11160 2.778 0.8 x 2
1 BKN15 / FKN15 / BFN15 / FFN15 6530 15970 3.175 0.8 x 2
1 BKN20 / FKN20 / BFN20 / FFN20 9760 24950 3.969 0.8 x 2

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D E H L Q W X d0 x Lead
53 10 32 10.1 34 42.5 M6 42 4.5 16 x 32
62 10 39 13 41 48 M6 50 5.5 20 x 40
74 12 47 15 49 58 M6 60 6.6 25 x 50
