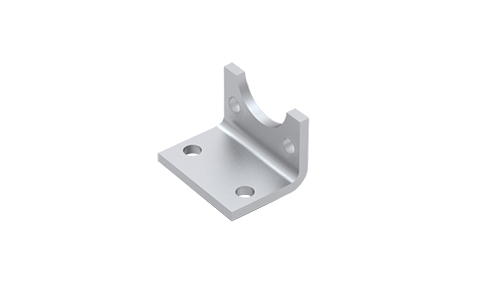

HG
Dimensions in mm.
Read more
Product Information
Material: Galvanized or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | HG 32 | PNCE 32 | Front cap mounting | Galvanized steel | F PNCE | 0.09 | ||||
|
|
|
2 | HG 32 CR | PNCE 32 | Front cap mounting | Stainless steel AISI 304 | F PNCE | 0.09 | ||||
|
|
|
2 | HG 32 MSD | PNCE 32 | Motor side drive type T1 mounting | Galvanized steel | F PNCE | 0.09 | ||||
|
|
|
2 | HG 32 MSD CR | PNCE 32 | Motor side drive type T1 mounting | Stainless steel AISI 304 | F PNCE | 0.09 | ||||
|
|
|
2 | HG 40 | PNCE 40 | Front cap mounting | Galvanized steel | 3500 | 0.1 | ||||
|
|
|
2 | HG 40 CR | PNCE 40 | Front cap mounting | Stainless steel AISI 304 | 3500 | 0.1 | ||||
|
|
|
2 | HG 40 MSD | PNCE 40 | Motor side drive type T1 mounting | Galvanized steel | 3500 | 0.1 | ||||
|
|
|
2 | HG 40 MSD CR | PNCE 40 | Motor side drive type T1 mounting | Stainless steel AISI 304 | 3500 | 0.1 | ||||
|
|
|
2 | HG 50 | PNCE 50 | Front cap mounting | Galvanized steel | 5400 | 0.2 | ||||
|
|
|
2 | HG 50 CR | PNCE 50 | Front cap mounting | Stainless steel AISI 304 | 5400 | 0.2 | ||||
|
|
|
2 | HG 50 MSD | PNCE 50 | Motor side drive type T1 mounting | Galvanized steel | 5400 | 0.2 | ||||
|
|
|
2 | HG 50 MSD CR | PNCE 50 | Motor side drive type T1 mounting | Stainless steel AISI 304 | 5400 | 0.2 | ||||
|
|
|
2 | HG 63 | PNCE 63 | Front cap mounting | Galvanized steel | 6200 | 0.22 | ||||
|
|
|
2 | HG 63 CR | PNCE 63 | Front cap mounting | Stainless steel AISI 304 | 6200 | 0.22 | ||||
|
|
|
2 | HG 63 MSD | PNCE 63 | Motor side drive type T1 mounting | Galvanized steel | 6200 | 0.22 | ||||
|
|
|
2 | HG 63 MSD CR | PNCE 63 | Motor side drive type T1 mounting | Stainless steel AISI 304 | 6200 | 0.22 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | D1 | D2 | R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
45 | 32 | 35 | 24 | 15.75 | 4 | 32.5 | 30 | 32 | Ø 7 | Ø 7 | 15 | ||||
|
|
|
45 | 32 | 35 | 24 | 15.75 | 4 | 32.5 | 30 | 32 | Ø 7 | Ø 7 | 15 | ||||
|
|
|
45 | 32 | 35 | 24 | 15.75 | 4 | 32.5 | 30 | 32 | Ø 7 | Ø 7 | 15 | ||||
|
|
|
45 | 32 | 35 | 24 | 15.75 | 4 | 32.5 | 30 | 32 | Ø 7 | Ø 7 | 15 | ||||
|
|
|
52 | 36 | 36 | 28 | 17 | 4 | 38 | 30 | 36 | Ø 10 | Ø 7 | 17.5 | ||||
|
|
|
52 | 36 | 36 | 28 | 17 | 4 | 38 | 30 | 36 | Ø 10 | Ø 7 | 17.5 | ||||
|
|
|
52 | 36 | 36 | 28 | 17 | 4 | 38 | 30 | 36 | Ø 10 | Ø 7 | 17.5 | ||||
|
|
|
52 | 36 | 36 | 28 | 17 | 4 | 38 | 30 | 36 | Ø 10 | Ø 7 | 17.5 | ||||
|
|
|
65 | 45 | 47 | 32 | 21.75 | 5 | 46.5 | 36 | 45 | Ø 10 | Ø 9 | 20 | ||||
|
|
|
65 | 45 | 47 | 32 | 21.75 | 5 | 46.5 | 36 | 45 | Ø 10 | Ø 9 | 20 | ||||
|
|
|
65 | 45 | 47 | 32 | 21.75 | 5 | 46.5 | 36 | 45 | Ø 10 | Ø 9 | 20 | ||||
|
|
|
65 | 45 | 47 | 32 | 21.75 | 5 | 46.5 | 36 | 45 | Ø 10 | Ø 9 | 20 | ||||
|
|
|
75 | 50 | 45 | 32 | 21.75 | 5 | 56.5 | 35 | 50 | Ø 10 | Ø 9 | 22.5 | ||||
|
|
|
75 | 50 | 45 | 32 | 21.75 | 5 | 56.5 | 35 | 50 | Ø 10 | Ø 9 | 22.5 | ||||
|
|
|
75 | 50 | 45 | 32 | 21.75 | 5 | 56.5 | 35 | 50 | Ø 10 | Ø 9 | 22.5 | ||||
|
|
|
75 | 50 | 45 | 32 | 21.75 | 5 | 56.5 | 35 | 50 | Ø 10 | Ø 9 | 22.5 |
-
-
