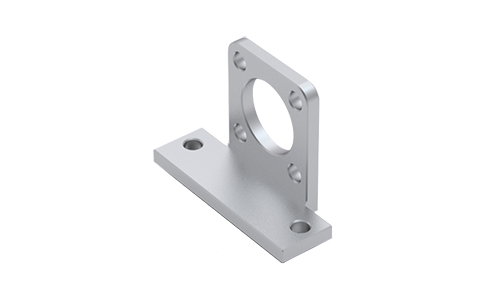

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
HGL
Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | HGL 32 | PNCE 32 | Front cap / Motor adapter mounting | F PNCE | 0.2 | ||||
|
|
|
2 | HGL 32 MSD | PNCE 32 | Motor side drive type T1 mounting | F PNCE | 0.2 | ||||
|
|
|
2 | HGL 40 | PNCE 40 | Front cap / Motor adapter mounting | 5100 | 0.24 | ||||
|
|
|
2 | HGL 40 MSD | PNCE 40 | Motor side drive type T1 mounting | 5100 | 0.24 | ||||
|
|
|
2 | HGL 50 | PNCE 50 | Front cap / Motor adapter mounting | 11100 | 0.56 | ||||
|
|
|
2 | HGL 50 MSD | PNCE 50 | Motor side drive type T1 mounting | 11100 | 0.56 | ||||
|
|
|
2 | HGL 63 | PNCE 63 | Front cap / Motor adapter mounting | 11100 | 0.81 | ||||
|
|
|
2 | HGL 63 MSD | PNCE 63 | Motor side drive type T1 mounting | 11100 | 0.81 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | D1 | D2 | D3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
79 | 65 | 30 | 16 | - | 6 (±0.5) | 32.5 | 55.5 | 32 (±0.1) | 47 | 6 (±0.5) | Ø 30 (H11) | Ø 7 (H13) | Ø 7 (H13) | ||||
|
|
|
79 | 65 | 30 | 16 | - | 6 (±0.5) | 32.5 | 55.5 | 32 (±0.1) | 47 | 6 (±0.5) | Ø 30 (H11) | Ø 7 (H13) | Ø 7 (H13) | ||||
|
|
|
90 | 75 | 30 | 16 | - | 6 (±0.5) | 38 | 63 | 36 (±0.1) | 54 | 6 (±0.5) | Ø 35 (H11) | Ø 7 (H13) | Ø 9 (H13) | ||||
|
|
|
90 | 75 | 30 | 16 | - | 6 (±0.5) | 38 | 63 | 36 (±0.1) | 54 | 6 (±0.5) | Ø 35 (H11) | Ø 7 (H13) | Ø 9 (H13) | ||||
|
|
|
110 | 90 | 35 | 19 | - | 10 (±0.5) | 46.5 | 77.5 | 45 (±0.1) | 65 | 10 (±0.5) | Ø 40 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
110 | 90 | 35 | 19 | - | 10 (±0.5) | 46.5 | 77.5 | 45 (±0.1) | 65 | 10 (±0.5) | Ø 40 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
120 | 100 | 50 | 20 | 20 | 10 (±0.5) | 56.5 | 87.5 | 50 (±0.1) | 75 | 10 (±0.5) | Ø 45 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
120 | 100 | 50 | 20 | 20 | 10 (±0.5) | 56.5 | 87.5 | 50 (±0.1) | 75 | 10 (±0.5) | Ø 45 (H11) | Ø 9 (H13) | Ø 9 (H13) |
-
-
