SSG

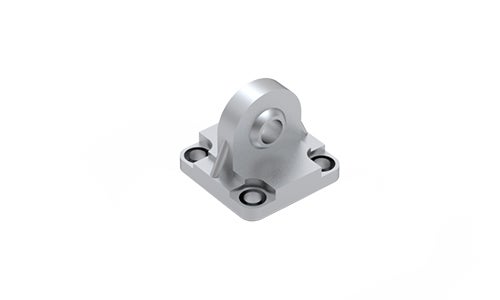

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
ZK
Dimensions in mm.
Read more
Product Information

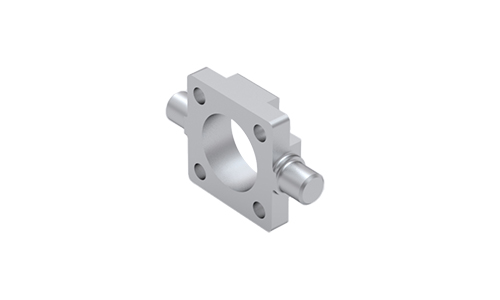

Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | ZK 32 | PNCE 32 | F PNCE | 0.17 | ||||
|
|
|
2 | ZK 40 | PNCE 40 | F PNCE | 0.43 | ||||
|
|
|
2 | ZK 50 | PNCE 50 | F PNCE | 0.58 | ||||
|
|
|
2 | ZK 63 | PNCE 63 | F PNCE | 1.12 | ||||
|
|
|
2 | ZK 80 | PNCE 80 | F PNCE | 1.57 | ||||
|
|
|
2 | ZK 100 | PNCE 100 | F PNCE | 2.93 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
46 | 32.5 | 50 (h14) | 12 (h14) | 14 | 6.5 (+0.2 / 0) | 6 (+0.5 / 0) | Ø 6.5 | Ø 10.5 | Ø 12 (e9) | Ø 30 (H11) | ||||
|
|
|
59 | 38 | 63 (h14) | 16 (h14) | 19 | 9 (+0.2 / 0) | 6 (+0.5 / 0) | Ø 6.5 | Ø 10.5 | Ø 16 (e9 | Ø 35 (H11) | ||||
|
|
|
69 | 46.5 | 75 (h14) | 16 (h14) | 19 | 9 (+0.2 / 0) | 8 (+0.5 / 0) | Ø 8.5 | Ø 13.5 | Ø 16 (e9 | Ø 40 (H11) | ||||
|
|
|
84 | 56.5 | 90 (h14) | 20 (h14) | 24 | 11.5 (+0.2 / 0) | 8 (+0.5 / 0) | Ø 8.5 | Ø 13.5 | Ø 20 (e9 | Ø 45 (H11) | ||||
|
|
|
102 | 72 | 110 (h14) | 20 (h14) | 24 | 11.5 (+0.2 / 0) | 10 (+0.5 / 0) | Ø 10.5 | Ø 16.5 | Ø 20 (e9 | Ø 60 (H11) | ||||
|
|
|
125 | 89 | 132 (h14) | 25 (h14) | 29 | 14 (+0.2 / 0) | 10 (+0.5 / 0) | Ø 10.5 | Ø 16.5 | Ø 25 (e9 | Ø 70 (H11) |
-
-

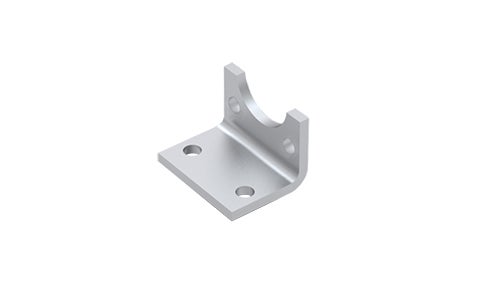

HG
Mounting attachment accessory HG, galvanized or stainless steel AISI 304 -

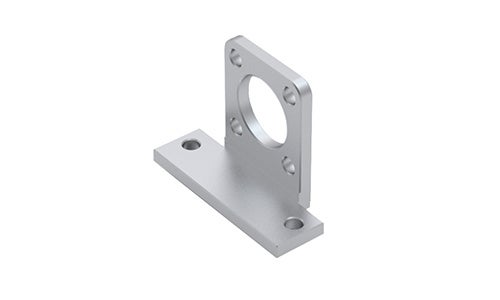

HGLL
Mounting attachment accessory HGLL, galvanized steel -
FG

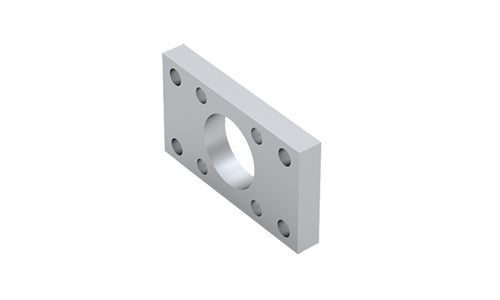

Mounting attachment accessory FG, galvanized or stainless steel AISI 304 -
LZ

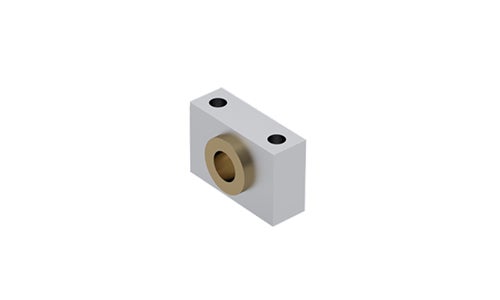

Mounting attachment accessory LZ, galvanized steel -

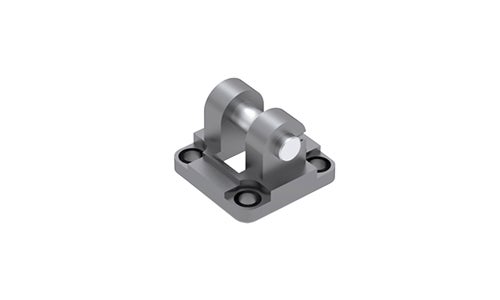

SGN
Mounting attachment accessory SGN, aluminium or stainless steel AISI 316 -
SBG

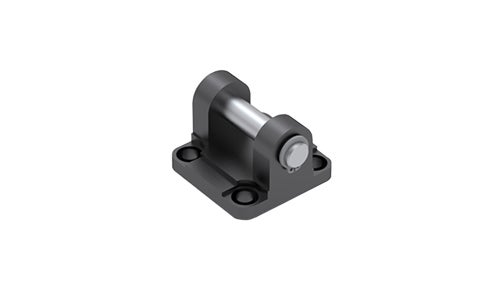

Mounting attachment accessory SBG, aluminium or stainless steel AISI 304 -

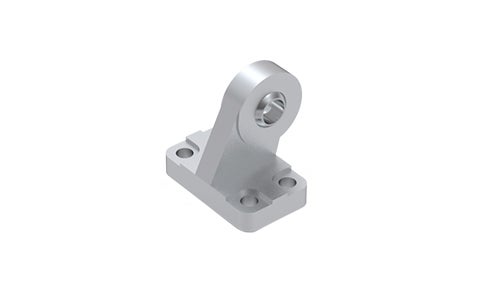

LSG
Mounting attachment accessory LSG, steel (black cataphoresis) or stainless steel AISI 316 -
HGL

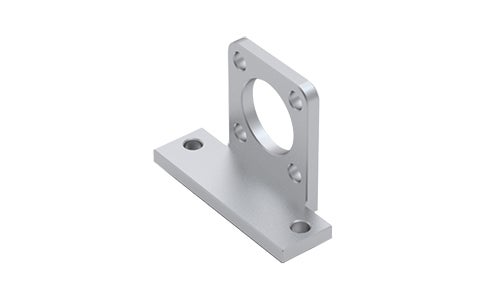

Mounting attachment accessory HGL, galvanized steel -
SGL

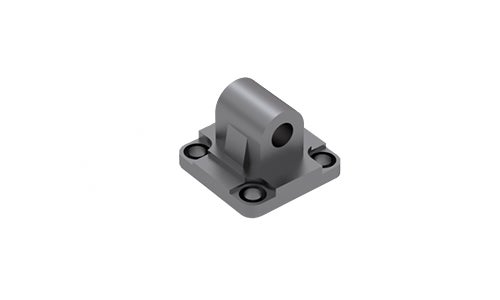

Mounting attachment accessory SGL, Aluminium or stainless steel AISI 304 -

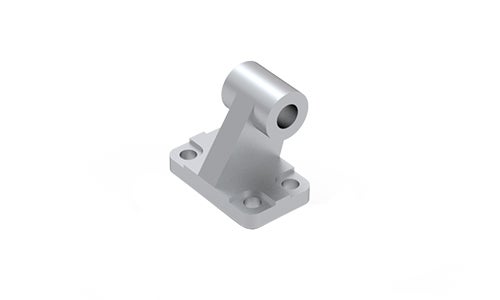

LG
Mounting attachment accessory LG, aluminium or stainless steel AISI 304 -
ZKCE

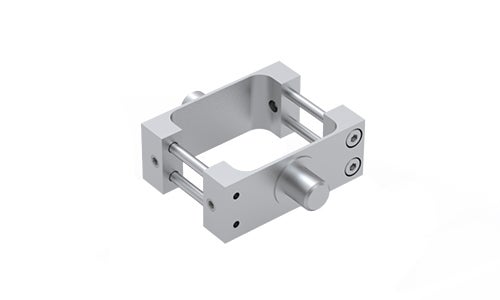

Mounting attachment accessory ZKCE
