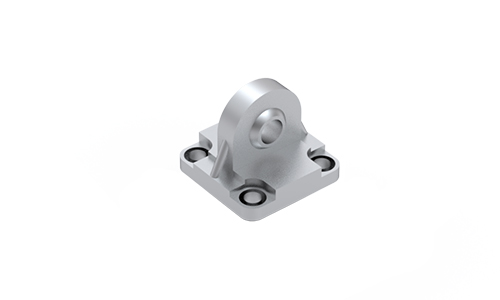

Mounting attachment accessory HG, galvanized or stainless steel AISI 304
SSG
Dimensions in mm.
Read more
Product Information
Material: Aluminium or stainless steel AISI 316
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SSG 32 | PNCE 32 | Aluminium | F PNCE | 0.09 | ||||
|
|
|
2 | SSG 32 CR | PNCE 32 | Stainless steel AISI 316 | F PNCE | 0.18 | ||||
|
|
|
2 | SSG 40 | PNCE 40 | Aluminium | F PNCE | 0.13 | ||||
|
|
|
2 | SSG 40 CR | PNCE 40 | Stainless steel AISI 316 | F PNCE | 0.29 | ||||
|
|
|
2 | SSG 50 | PNCE 50 | Aluminium | 14400 | 0.24 | ||||
|
|
|
2 | SSG 50 CR | PNCE 50 | Stainless steel AISI 316 | 14400 | 0.42 | ||||
|
|
|
2 | SSG 63 | PNCE 63 | Aluminium | 14400 | 0.3 | ||||
|
|
|
2 | SSG 63 CR | PNCE 63 | Stainless steel AISI 316 | 14400 | 0.66 | ||||
|
|
|
2 | SSG 80 | PNCE 80 | Aluminium | 22500 | 0.54 | ||||
|
|
|
2 | SSG 80 CR | PNCE 80 | Stainless steel AISI 316 | 22500 | 1.24 | ||||
|
|
|
2 | SSG 100 | PNCE 100 | Aluminium | 22500 | 0.68 | ||||
|
|
|
2 | SSG 100 CR | PNCE 100 | Stainless steel AISI 316 | 22500 | 1.9 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
45 | 32.5 | 14 | 22 (JS 15) | 12 | 5 | 5.5 (±0.5) | Ø 10 (H7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 16 | ||||
|
|
|
45 | 32.5 | 14 | 22 (JS 15) | 12 | 5 | 5.5 (±0.5) | Ø 10 (H7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 15 | ||||
|
|
|
52 | 38 | 16 | 25 (JS 15) | 15 | 5 | 5.5 (±0.5) | Ø 12 (H7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 18 | ||||
|
|
|
55 | 38 | 16 | 25 (JS 15) | 15 | 5 | 5.5 (±0.5) | Ø 12 (H7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 18 | ||||
|
|
|
65 | 46.5 | 21 | 27 (JS 15) | 15 | 5 | 6.5 (±0.5) | Ø 16 (H7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 21 | ||||
|
|
|
65 | 46.5 | 21 | 27 (JS 15) | 17 | 5 | 6.5 (±0.5) | Ø 16 (H7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 21 | ||||
|
|
|
75 | 56.5 | 21 | 32 (JS 15) | 20 | 5 | 6.5 (±0.5) | Ø 16 (H7) | Ø 9 (H13) | Ø 45 (H11) | Ø 15 (H13) | 23 | ||||
|
|
|
75 | 56.5 | 21 | 32 (JS 15) | 20 | 5 | 6.5 (±0.5) | Ø 16 (H7) | Ø 9 (H13) | Ø 45 (H11) | Ø 15 (H13) | 23 | ||||
|
|
|
95 | 72 | 25 | 36 (JS 15) | 20 | 9 | 10 (±0.5) | Ø 20 (H7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 28 | ||||
|
|
|
95 | 72 | 25 | 36 (JS 15) | 22 | 5 | 10 (±0.5) | Ø 20 (H7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 27 | ||||
|
|
|
115 | 89 | 25 | 41 (JS 15) | 25 | 9 | 10 (±0.5) | Ø 20 (H7) | Ø 11 (H13) | Ø 55 (H11) | 18 (Ø H13) | 30 | ||||
|
|
|
115 | 89 | 25 | 41 (JS 15) | 25 | 5 | 10 (±0.5) | Ø 20 (H7) | Ø 11 (H13) | Ø 55 (H11) | 18 (Ø H13) | 30 |
-
-
