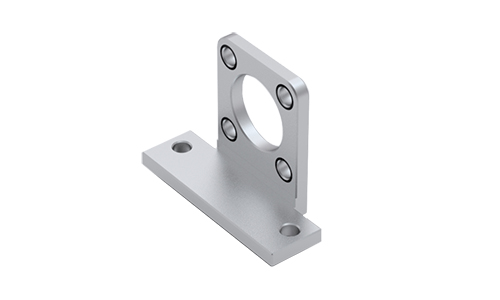

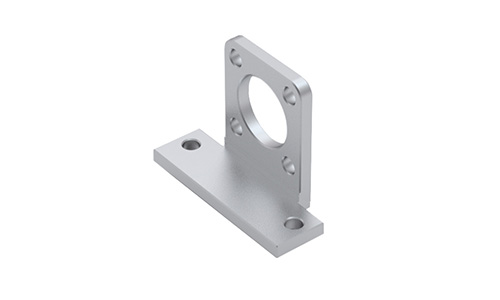

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
HGLL

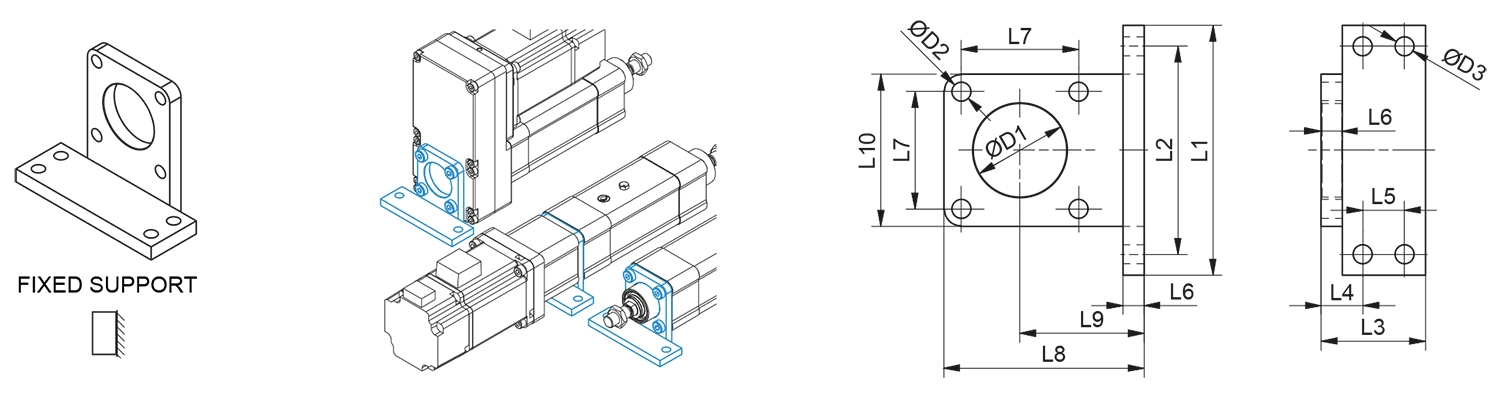

Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | HGLL 32 | PNCE 32 | Front cap / Motor adapter mounting | F PNCE | 0.21 | ||||
|
|
|
2 | HGLL 32 MSD | PNCE 32 | Motor side drive type T1 mounting | F PNCE | 0.21 | ||||
|
|
|
2 | HGLL 40 | PNCE 40 | Front cap / Motor adapter mounting | 2800 | 0.26 | ||||
|
|
|
2 | HGLL 40 MSD | PNCE 40 | Motor side drive type T1 mounting | 2800 | 0.26 | ||||
|
|
|
2 | HGLL 50 | PNCE 50 | Front cap / Motor adapter mounting | 7100 | 0.64 | ||||
|
|
|
2 | HGLL 50 MSD | PNCE 50 | Motor side drive type T1 mounting | 7100 | 0.64 | ||||
|
|
|
2 | HGLL 63 | PNCE 63 | Front cap / Motor adapter mounting | 10100 | 0.87 | ||||
|
|
|
2 | HGLL 63 MSD | PNCE 63 | Motor side drive type T1 mounting | 10100 | 0.87 | ||||
|
|
|
2 | HGLL 80 | PNCE 80 | - | 13200 | 1.71 | ||||
|
|
|
2 | HGLL 100 | PNCE 100 | - | F PNCE | 2.57 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | D1 | D2 | D3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
79 | 65 | 30 | 16 | - | 6 (±0.5) | 32.5 | 58.5 | 35 (±0.1) | 47 | 6 (±0.5) | Ø 30 (H11) | Ø 7 (H13) | Ø 7 (H13) | ||||
|
|
|
79 | 65 | 30 | 16 | - | 6 (±0.5) | 32.5 | 58.5 | 35 (±0.1) | 47 | 6 (±0.5) | Ø 30 (H11) | Ø 7 (H13) | Ø 7 (H13) | ||||
|
|
|
90 | 75 | 30 | 16 | - | 6 (±0.5) | 38 | 72 | 45 (±0.1) | 54 | 6 (±0.5) | Ø 35 (H11) | Ø 7 (H13) | Ø 9 (H13) | ||||
|
|
|
90 | 75 | 30 | 16 | - | 6 (±0.5) | 38 | 72 | 45 (±0.1) | 54 | 6 (±0.5) | Ø 35 (H11) | Ø 7 (H13) | Ø 9 (H13) | ||||
|
|
|
110 | 90 | 35 | 19 | - | 10 (±0.5) | 46.5 | 92.5 | 60 (±0.1) | 65 | 10 (±0.5) | Ø 40 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
110 | 90 | 35 | 19 | - | 10 (±0.5) | 46.5 | 92.5 | 60 (±0.1) | 65 | 10 (±0.5) | Ø 40 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
120 | 100 | 50 | 20 | 20 | 10 (±0.5) | 56.5 | 97.5 | 60 (±0.1) | 75 | 10 (±0.5) | Ø 45 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
120 | 100 | 50 | 20 | 20 | 10 (±0.5) | 56.5 | 97.5 | 60 (±0.1) | 75 | 10 (±0.5) | Ø 45 (H11) | Ø 9 (H13) | Ø 9 (H13) | ||||
|
|
|
153 | 128 | 62 | 27 | 25 | 12 (±0.5) | 72 | 128.5 | 82 (±0.1) | 93 | 13 (±0.5) | Ø 60 (H11) | Ø 11 (H13) | Ø 11 (H13) | ||||
|
|
|
178 | 148 | 72 | 27 | 30 | 15 (±0.5) | 89 | 137 | 82 (±0.1) | 110 | 15 (±0.5) | Ø 70 (H11) | Ø 11 (H13) | Ø 11 (H13) |
-
-
